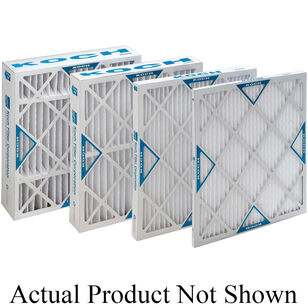

Hart & Cooley® Multi-Pleat™ XL8 102700053 Air Filter, Pleated Filter, 16 in W, 24 in H, 2 in D, 8 MERV
Hart & Cooley® Multi-Pleat™ XL8 102700053 Air Filter, Pleated Filter, 16 in W, 24 in H, 2 in D, 8 MERV
Hart & Cooley® Multi-Pleat™ XL8 Air Filter, Pleated Filter, Metal Media, Beverage Board Frame, 16 in Width, 24 in Height, 2 in D, MERV: 8, 100 % Filter Efficiency, 7.8 sq-ft, 11.6 sq-ft Media Area, 300 fpm, 500 fpm, 625 fpm Rated Velocity, 0.09 in, 0.14 in Initial Resistance, 1 in Final Resistance, 800 cfm, 1350 cfm, 1675 cfm Air Flow Capacity, 15-1/2 x 23-1/2 x 1-3/4 in Actual Size, 200 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$20.15 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHart & Cooley®
Actual Size15-1/2 x 23-1/2 x 1-3/4
Air Flow Capacity800 cfm, 1350 cfm, 1675 cfm
ApplicationHospitals, Laboratories, Pharmaceutical Plants, Commercial Office Buildings Applications
Depth2
Filter Efficiency100
Filter TypePleated
Final Resistance1
Frame MaterialBeverage Board
Height24
IndustryHVAC
Initial Resistance0.09 ", 0.14 "
Media Area7.8 sq-', 11.6 sq-'
Media MaterialMetal
MERV8
Rated Velocity300 fpm, 500 fpm, 625 fpm
Temperature Rating200
Width16
Additional Information
ASHRAE 52.2-2007
Features & Benefits
- Moisture-resistant beverage board frame maintains rigidity even in high humidity environments 100% mechanical media provides high efficiency, excellent dust holding capacity throughout the filter's lifecycle Rust-resistant galvanized-dipped expanded metal support grid is totally laminated to media to insure even pleat spacing and structural support Pleats are bonded to frame to guarantee consistent pleat configuration and total media utilization Frame is double walled with reinforced corners to insure rigidity in the toughest applications
Documents
Marketing Information
The multi-pleat XL8 media is produced with an optimal blend of highly specialized fibers, developed by Koch Filter Corporation specifically for use in extended surface air filters. Developed to deliver a "one of a kind" performance, this specialized media operates on mechanical filtration principles which provide high efficiency, low pressure drop and high dust holding capacity. The Koch multi-pleat XL8 maintains a MERV 8 performance rating before and after conditioning steps when tested in accordance to ASHRAE test standard 52.2-2007 and 52.2- 2007 Appendix J.
Hart & Cooley® Multi-Pleat™ XL8 102700053 Air Filter, Pleated Filter, 16 in W, 24 in H, 2 in D, 8 MERV
BrandHart & Cooley®
MFG #102700053
Keller #899247
