ASME A112.18.1|CSA B125.1|cUPC Certified|ETL Listed|UPC Listed

• For top-mount water supply Mounting flanges - no clips to lose or hassle with Top and bottom stabilizer bar slots Nail slots Nine valve knockouts Two drain knockouts - 2 in standard washing machine drain Integrated drain knockouts will not fall down the drain after DWV test Anti-rotational valve design Faceplates fit any box configuration, including fire-rated All faceplates fit up to two sheets of 5/8 in drywall Standard faceplate includes cable tie bosses to secure drain hose

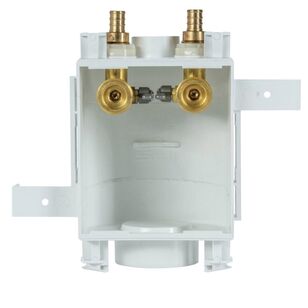

The Water-Tite® multi-box washing machine outlet box is configured for simple and secure installation, making it a reliable choice for contractors and homeowners. This single-box unit has multiple valve knockouts and two drains: one for a standard 2 in washing machine drain and an optional 1 in drain to pipe the box to the DWV (drain, waste and vent) system. The supply valves come pre-installed and are durable forged brass with an anti-rotational design, making them long-lasting and easy to access and use. This one-piece washing machine outlet box features built-in mounting flanges and can be installed more quickly than separate drain and valve boxes. It comes with a snap-on faceplate (6-1/2 inches wide by 6-7/8 inches high) that is interchangeable with all multi-box outlet boxes and is able to accommodate up to two sheets of 5/8 in drywall. The box has top and bottom stabilizer bar slots and nail slots for optional extra support. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.
