ASME A112.18.1|CSA B125.1.0.5|cUPC Certified|ETL Certified|UPC Certified

• Mounting flanges - no clips to lose or hassle with Top and bottom stabilizer bar slots Nail slots Nine valve knockouts Two drain knockouts - 2 in standard washing machine drain, optional 1 in to pipe valve box to DWV system Integrated drain knockouts will not fall down the drain after DWV test Anti-rotational valve design Faceplates fit any box configuration, including fire-rated All faceplates fit up to two sheets of 5/8 in drywall Standard faceplate includes cable tie bosses to secure drain hose

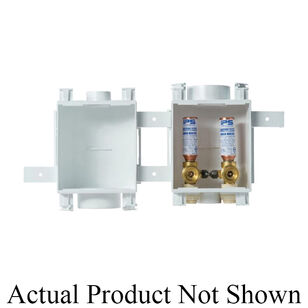

Designed with separate valve and drain boxes, the Water-Tite® MultiBox™ washing machine outlet box with auxiliary drain box gives homeowners expanded functionality for laundry rooms. This dual-box unit has a valve box with a DWV (drain, waste and vent) drain to capture hose leaks and a drain box with an optional 2 in drain. The dual-box system features integrated-mounting flanges for easy installation, as well as top and bottom stabilizer bar slots and nail slots for optional extra support. This outlet box unit comes with (2) pre-installed supply valves that are durable forged brass and have an anti-rotational design, making them long-lasting and easy to access and use. The valves feature built-in hammer arresters that absorb sudden pressure changes to reduce stress on the plumbing system, providing continuous and maintenance-free protection against water hammer. The included faceplates (6-7/8 in H x 6-1/2 in W) are interchangeable with all MultiBox™ outlet boxes and are able to accommodate up to two sheets of 5/8 in drywall. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.
