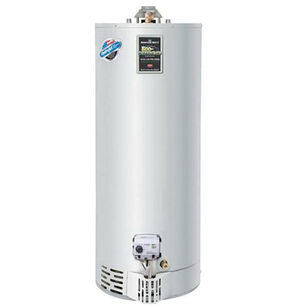

Bradford White® URG250L6N Gas Water Heater, 48 gal, 40000 Btu/hr, 11.7 kW, Natural Gas
Bradford White® URG250L6N Gas Water Heater, 48 gal, 40000 Btu/hr, 11.7 kW, Natural Gas
Bradford White® Gas Water Heater, 48 gal Capacity, 40000 Btu/hr, 11.7 kW, 77 gal First Hour Delivery, 0.63 Energy Factor, 43 gph Recovery Rate, 3 in, 4 in Vent, Atmospheric Vent, NPT Connection, 150 psi, Recovery Efficiency: 80 %, Floor Mounting, Natural Gas Fuel, ICON® Ignition System, Piezo Ignition, Steel, 160 deg F, 24 in Dia x 51-13/16 in H x 27-3/16 in D, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,304.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBradford White®
BTU Rating40000
Capacity48
Connection TypeNPT
Dimensions24 " Dia x 51-13/16 " H x 27-3/16 " D
Domestic/ImportDomestic
Energy Factor0.63
First Hour Delivery77
Fuel TypeNatural Gas
Ignition SystemICON
Ignition TypePiezo
MaterialSteel
Mounting TypeFloor
Power Rating11.7
Pressure Rating150
Recovery Efficiency80
Recovery Rate43
Temperature Rating160
Vent Size3 ", 4 ""
Vent TypeAtmospheric
Shipping Dimensions (L x W x H)26.75" x 25.25" x 51.13"
Additional Information
ANSI Z21.10.1-2019|ASHRAE 90.1b|CEC Compliant|CSA 4.1-2019
Features & Benefits
- Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials Microprocessor controls burner operation for consistent and accurate water temperature levels up to 160 deg F (71 deg C) Exclusive multi-color LED light indicates operation status/service required Incorporates the advanced ScreenLok® technology flame arrestor and large split-door design to prevent ignition of flammable vapors outside the water heater Ensures proper air to gas ratio for reduction of NOx generated by the combustion process Coordinates with self-diagnostic control to prevent water heater operation when needed No regular cleaning of air inlet openings or flame arrestor is required under normal conditions Offers a view into the combustion chamber to observe the operation of the pilot and burner Sediment reducing device that also increases first hour rating of hot water while minimizing temperature build-up in tank An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining Non-CFC foam covers the sides and top of the tank, reducing heat loss This results in less energy consumption, improved efficiencies and jacket rigidity Rugged and durable base allows easy transport and positioning and corrosion-resistant contact with floor 3/4 in (19 mm) NPT factory installed true dielectric fittings extend water heater life and simplify water line connections Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation Provides added protection against corrosion for long-term, trouble-free service Maximizes the amount of heat absorbed by the tank and reduces heat loss during standby periods Heavy-gauge steel automatically formed, rolled and welded T and P relief valve
Documents
Marketing Information
Intelligent gas control with proven millivolt powered technology and built-in piezo igniter. A standard, off-the-shelf thermopile converts heat energy from the pilot flame into electrical energy to operate the gas valve and microprocessor. No need for external electricity.
