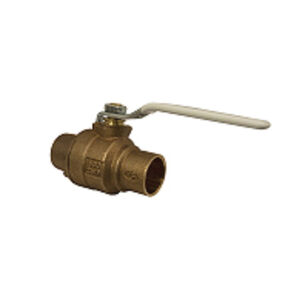

Apollo® 77CLF-A Contractor Series 77CLF24401A Ball Valve, 3/4 in, Solder, Bronze, 150 psi WSP, 600 psi CWP
Apollo® 77CLF-A Contractor Series 77CLF24401A Ball Valve, 3/4 in, Solder, Bronze, 150 psi WSP, 600 psi CWP
Apollo® Ball Valve, 77CLF-A Contractor Series, 3/4 in Nominal, Solder Connection, Full Port, 2-Piece, Standard, 150 psi WSP, 600 psi CWP, Water Media, 3.2 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, 0.88 in Opening, Lever Handle Operator, 36 Cv Flow Coefficient (Cv), Material Standard: ASTM B584 C89836, ASTM B16, ASTM C27451, Bronze Body, RPTFE Seat, 316 Stainless Steel Stem, RPTFE Seal, 316 Stainless Steel/RPTFE Trim, RPTFE Packing, Steel/Vinyl Handle, 316 Stainless Steel Ball, RPTFE Softgoods, Lead-Free, Yellow, 450 deg F, 3.2 in L, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum, Vented Ball
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$154.73 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information29 inHg Vacuum, Vented Ball
ApplicationFor potable water
Ball Material316 Stainless Steel
Body MaterialBronze
ColorYellow
Configuration2-Piece, Standard
Connection TypeSolder
Dimensions3.2 " L
Domestic/ImportDomestic
Flow Coefficient (Cv)36
Handle MaterialSteel/Vinyl
IndustryPlumbing
Inlet to Outlet Length3.2
Lead-FreeYes
Material StandardASTM B584 C89836, ASTM B16, ASTM C27451
MediaWater
Nominal Size3/4
Opening Size0.88
Operator TypeLever Handle
Packing MaterialRPTFE
Port TypeFull
Pressure Rating150 psi WSP, 600 psi CWP
Seal MaterialRPTFE
Seat MaterialRPTFE
Series77CLF-A Contractor Series
Softgoods MaterialRPTFE
Stem Material316 Stainless Steel
Temperature Rating450
Top to Inlet Center1.91
Trim Material316 Stainless Steel/RPTFE
Warranty5 Year
Shipping Dimensions (L x W x H)5.31" x 2.72" x 1.61"
Additional Information
ANSI Z1157|CRN 0C10908.5C|cUPC Certified|EU Directive 2015/863 (RoHS 3)|EU Regulation (EC) 1907/2006 (REACH)|IAPMO Approved|MSS-SP-110|NSF/ANSI/CAN 61, 372
Features & Benefits
- Easily identifiable white handle and blue lead-free hang tag EZ-Solder™ lead-free bronze Blowout-proof stem Manufactured and 100% factory tested in USA
Documents
Marketing Information
The Apollo® 77CLF-A Contractor Series lead-free ball valve features a dezincification-resistant bronze body, premium RPTFE seats and stem packing and a "Solid Ball" design that delivers true full-port flow performance. Cast and machined in Apollo® valves South Carolina manufacturing plants using proven EZ-Solder™ lead-free materials.
