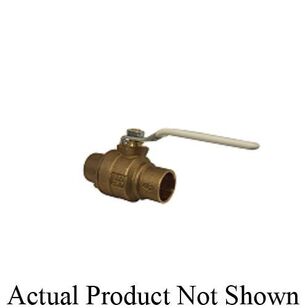

Apollo® 77CLF-240A Series 77CLF24901A 2-Piece Straight Ball Valve, 2-1/2 in, Solder, Bronze, 600 psi
Apollo® 77CLF-240A Series 77CLF24901A 2-Piece Straight Ball Valve, 2-1/2 in, Solder, Bronze, 600 psi
Apollo® 2-Piece Straight Ball Valve, 77CLF-240A Series, 2-1/2 in Nominal, Solder Connection, Full Port, 600 psi, 7.17 in Inlet to Outlet Length, 4.13 in Top to Inlet Center, 2-1/2 in Opening, Lever Operator, 503 Cv Flow Coefficient (Cv), Material Standard: ASTM B584 C89836, Bronze Body, RPTFE Seat, 316 Stainless Steel Stem, RPTFE Seal, 316 Stainless Steel/RPTFE Trim, RPTFE Packing, Steel/Vinyl Handle, 316 Stainless Steel Ball, RPTFE Softgoods, Lead-Free, Yellow, Finish: Bronze, 450 deg F, Domestic/Import: Domestic, Additional Information: 29 in-Hg Vacuum Service, Vented Ball
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,949.24 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information29 "-Hg Vacuum Service, Vented Ball
Ball Material316 Stainless Steel
Body MaterialBronze
ColorYellow
Connection TypeSolder
Domestic/ImportDomestic
FinishBronze
Flow Coefficient (Cv)503
Handle MaterialSteel/Vinyl
Inlet to Outlet Length7.17
Material StandardASTM B584 C89836
Nominal Size2-1/2
Opening Size2-1/2
Operator TypeLever
Packing MaterialRPTFE
Port TypeFull
Pressure Rating600
Seal MaterialRPTFE
Seat MaterialRPTFE
Series77CLF-240A Series
Softgoods MaterialRPTFE
Stem Material316 Stainless Steel
Temperature Rating450
Top to Inlet Center4.13
Trim Material316 Stainless Steel/RPTFE
Additional Information
ANSI Specified|City of Los Angeles DBS|CRN 0C10908.5C|EU 1907/2006|Federal Public Law 111-380|IAPMO/ANSI Z1157|Lead-Free Certified|MSS SP-110|NSF/ANSI/CAN 61/372|REACH Compliant|RoHS EU Directive 2015/863|UPC Listed
Features & Benefits
- Easily identifiable white handle and blue lead-free hang tag EZ-Solder™ lead-free bronze Blowout-proof stem design Manufactured and 100% factory tested in USA
Marketing Information
The Apollo® 77CLF-A "Contractor Series" lead-free ball valve features a dezincification-resistant bronze body, premium RPTFE seats and stem packing and a "Solid Ball" design that delivers true full port flow performance. Cast and machined in Apollo®® Valves's South Carolina manufacturing plants using proven EZ-Solder™ lead-free materials.
