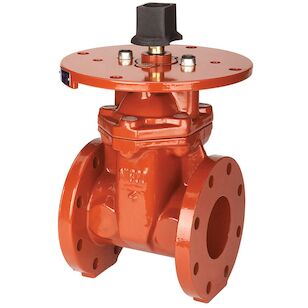

NIBCO F-609-RWS-6IN LF GV
NIBCO F-609-RWS-6IN LF GV
NIBCO®, 6 in Nominal, Connection Type: Flanged, 250 psi CWP, 250 psi WWP, Ductile Iron Body, EPDM Rubber Seal, Multi-Turn Square Operating Nut Operator, Lead-Free/Contains Lead: Lead-Free, 22.34 in L x 12.01 in W x 12.01 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,664.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialDuctile Iron
Connection TypeFlanged
Dimensions22.34 " L x 12.01 " W x 12.01 " H
Nominal Size6
Operator TypeMulti-Turn Square Operating Nut
Pressure Rating250 psi CWP, 250 psi WWP
Seal MaterialEPDM Rubber
Additional Information
NSF/ANSI 372
Features & Benefits
- 300 psi/20.7 bar non-shock cold working pressure Non-rising stem Bolted bonnet Resilient wedge Epoxy coated body inside and out per AWWA C-550 (coating NSF and FDA certified) Class 125 flanged end connections Meets or exceeds performance requirements of AWWA C509 and C515 for 3'' and larger valves Listed by UL/ULC (UL262) FM Approved
Marketing Information
The NIBCO pecent gate valve features Class 125 flanged, flat face end connections for easy installation and accessibility. Non-rising stem (used in conjunction with indicator posts) gate valves are recommended when positive shutoff and a quick visual indicator of open/closed position is required. This flanged valve is drilled, tapped, and plugged at location "A" for bypass. It is listed by Underwriters Laboratories of the US and Canada (UL/ULC) and FM Approved. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO pecent gate valves for the most specified, versatile and economical valve option in commercial, mechanical, fire protection and industrial applications. NIBCO pecent pressure rated valves are backed by the NIBCO 5-year 125% limited warranty.
NIBCO F-609-RWS-6IN LF GV
BrandNIBCO®
MFG #NS5031K
Keller #903607
My Part ##
Last Ordered#
$3,664.00 / ea
