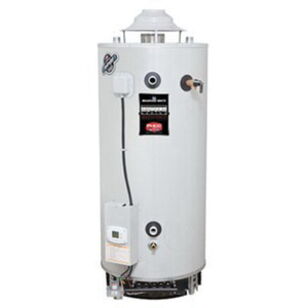

Bradford White® D-100T-199-3N Gas Water Heater, 98 gal, 199999 Btu/hr, 58.6 kW, Natural Gas
Bradford White® D-100T-199-3N Gas Water Heater, 98 gal, 199999 Btu/hr, 58.6 kW, Natural Gas
Bradford White® Gas Water Heater, 98 gal Capacity, 199999 Btu/hr, 58.6 kW, 139 gph, 194 gph, 485 gph Recovery Rate, 6 in Vent, Atmospheric Vent, 15 A, 120 V, 60 Hz, NPT Connection, 150 psi, Recovery Efficiency: 80 %, Floor Mounting, Natural Gas Fuel, Electronic Ignition System, 180 deg F, 28-1/4 in Dia x 83-13/16 in H x 32-1/2 in D, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$9,322.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBradford White®
Amperage Rating15
BTU Rating199999
Capacity98
Connection TypeNPT
Dimensions28-1/4 " Dia x 83-13/16 " H x 32-1/2 " D
Domestic/ImportDomestic
Frequency Rating60
Fuel TypeNatural Gas
Ignition SystemElectronic
IndustryPlumbing
Mounting TypeFloor
Power Rating58.6
Pressure Rating150
Recovery Efficiency80
Recovery Rate139 gph, 194 gph, 485 gph
Temperature Rating180
Vent Size6"
Vent TypeAtmospheric
Voltage Rating120
Shipping Dimensions (L x W x H)35.5" x 30.25" x 91.38"
Additional Information
ANSI Z21.10.3-2019|ASHRAE 90.1b|CEC Compliant|CSA 4.3-2019
Features & Benefits
- Intelligent proven design combines temperature control, diagnostic codes and system ignition functions into a single control board with a digital LCD display, control panel cover tilts down for ease of wiring and service Two different digitally displayed operation modes have the capability of adjusting the temperature setting up to 180 deg F (82 deg C) and adjusting the degree setting (deg F to deg C or deg C to deg F) Eight different digitally displayed service modes can be easily cycled through by pressing the select button Lock the maximum temperature setting that can be adjusted in operation mode Display the average water temperature (for two sensor models) and see the upper and lower temperature sensor readings High voltage, low current electricity is sent to the pilot electrode initiating a spark to ignite the pilot gas, saves pilot gas during standby periods, the pilot flame only operates when there's a call for heat Reduces stand-by loss, saving gas consumption and improving overall efficiency Cold-water inlet sediment reducing device helps prevent sediment build-up in the tank An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining Non-CFC foam covers the sides and top of the tank, reducing heat loss This results in less energy consumption, improved efficiencies and jacket rigidity 1-1/2 in (38 mm) NPT factory installed true dielectric fittings extend water heater life and simplify water line connections Allows inspection of tank interior and facilitates the removal of sediment deposits
