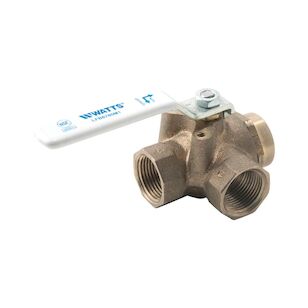

WATTS® LFB6780-M1 Series 0555219 2-Piece Ball Valve, 1/2 in, NPT x FPT, Bronze, 400 psi
WATTS® LFB6780-M1 Series 0555219 2-Piece Ball Valve, 1/2 in, NPT x FPT, Bronze, 400 psi
WATTS® 2-Piece Ball Valve, LFB6780-M1 Series, 1/2 in Nominal, NPT x FPT Connection, Full Port, 400 psi, Water Media, 2-9/32 in Inlet to Outlet Length, 1-5/8 in Top to Inlet Center, Lever Handle Operator, 4.8 Cv Flow Coefficient (Cv), Bronze Body, PTFE Seat, Brass Stem, Brass Ball, Lead-Free, 0 to 350 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$207.50 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Ball MaterialBrass
Body MaterialBronze
Connection TypeNPT x FPT
Flow Coefficient (Cv)4.8
IndustryPlumbing
Inlet to Outlet Length2-9/32
Lead-FreeYes
MediaWater
Nominal Size1/2
Operator TypeLever Handle
Port TypeFull
Pressure Rating400
Seat MaterialPTFE
SeriesLFB6780-M1 Series
Stem MaterialBrass
Temperature Rating0 to 350
Top to Inlet Center1-5/8
Shipping Dimensions (L x W x H)2.25" x 1.25" x 4.89"
Features & Benefits
- 400 psi (28 bar) WOG non-shock at 100 degrees F (38 degrees C) Blowout proof pressure retaining stem
Marketing Information
This 1/2 inch lead free two-piece full port diverter ball valve with threaded end connections is used in commercial and industrial applications designed to divert a full range of liquids and gases. The full port orifice ensures minimal pressure drop, while PTFE seat and chrome plated lead free brass ball provide lasting service. The temperature range is 0 to 350 degrees F (minus 18 to 177 degrees C) at 50 psi (3.5 bar). The maximum working pressure is 400 psi (28 bar) WOG non-shock at 100 degrees F (38 degrees C), 125 psi (8.6 bar) WSP.
WATTS® LFB6780-M1 Series 0555219 2-Piece Ball Valve, 1/2 in, NPT x FPT, Bronze, 400 psi
BrandWATTS®
MFG #0555219
Keller #909050
My Part ##
Last Ordered#
$207.50 / ea
