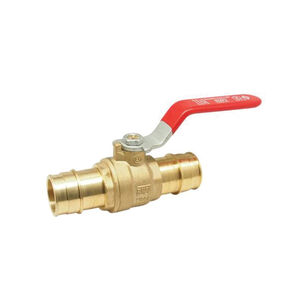

RWV® 004-46257 Ball Valve, 2-1/2 in, PEX, DZR Brass, 300 psi
RWV® 004-46257 Ball Valve, 2-1/2 in, PEX, DZR Brass, 300 psi
RWV® Ball Valve, 2-1/2 in Nominal, PEX Connection, Full Port, 300 psi, Pressure Class: 400 lb, Gas, Oil, Water Media, 8.96 in Inlet to Outlet Length, 3.07 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B927 C27453, DZR Brass Body, PTFE Seat, Brass Stem, NBR Seal, NBR Packing, Steel Handle, Brass Ball, NBR Softgoods, Lead-Free, 15 to 160 deg F, Additional Information: 2-Piece
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$552.09 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
Additional Information2-Piece
ApplicationFor PEX tubing
Ball MaterialBrass
Body MaterialDZR Brass
Connection TypePEX
Dimensions8.96" L
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length8.96
Material StandardASTM B927 C27453
MediaGas, Oil, Water
Nominal Size2-1/2
Opening Size1.95"
Operator TypeLever Handle
Packing MaterialNBR
Port TypeFull
Pressure Class400
Pressure Rating300
Seal MaterialNBR
Seat MaterialPTFE
Series5015AB Series
Softgoods MaterialNBR
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center3.07
Trim MaterialBrass/PTFE
Additional Information
AB1953 Certified|CSA B125.3|NSF/ANSI 61/372
Features & Benefits
- F1960 Full Port Virgin PTFE Seats Double NBR O-ring Packing Blow-Out Proof Stem For Use with PEX Tubing
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
