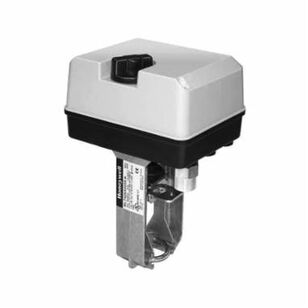

Honeywell ML7420 ML7420A3055 Valve Actuator, ABS/Aluminum
Honeywell ML7420 ML7420A3055 Valve Actuator, ABS/Aluminum
Honeywell Valve Actuator, Model: ML7420, 24 V, 50/60 Hz, VA Rating: 7 VA, SPDT, Screw Terminal Electrical Connection, Non-Spring Return Operator, 7 VA Power Consumption, 135 in-lb Torque, 1 kOhm Input, 3/4 in Stroke, IP54 Enclosure, Voltage Accuracy: +/-15 %, ABS/Aluminum Body, -14 to 122 deg F, 9-9/16 in H x 5-5/16 in W x 6-5/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$723.40Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Body MaterialABS/Aluminum
ConfigurationSPDT
Dimensions9-9/16 " H x 5-5/16 " W x 6-5/16 " D
Electrical ConnectionScrew Terminal
Enclosure TypeIP54
Frequency Rating50/60
IndustryHVAC
Input Impedance1
ModelML7420
Operator TypeNon-Spring Return
Power Consumption7
Stroke3/4
Temperature Rating-14 to 122
Torque Rating135
VA Rating7
Voltage Accuracy+/-15
Voltage Rating24
Additional Information
CE Marked|CSA Certified|UL 94V-5V
Features & Benefits
- Easy and quick installation on valves with 1-3/8 in bonnet and 3/4 in stroke No separate linkage required Conduit connector standard No adjustments required on linkage Accurate valve positioning Low power consumption High close off ratings Force limiting end switches ML7420 has an internal selector plug that can be used to reverse the direction of action
Marketing Information
The non-spring return electric linear valve actuators have floating or modulating control. These actuators operate standard Honeywell valves in heating, ventilating and air conditioning (HV) applications. Floating control actuators are used with controllers that provide a switched or floating single-pole double throw (SPDT) output. Modulating control actuators are used with controllers that provide an analog output of 0 to 10 VDC or 2 to 10 VDC.
Honeywell ML7420 ML7420A3055 Valve Actuator, ABS/Aluminum
BrandHoneywell
MFG #ML7420A3055
Keller #911612
