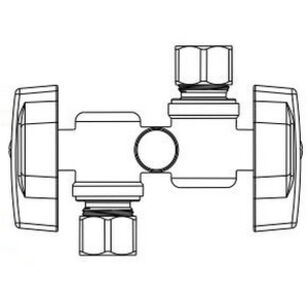

BrassCraft® KTBRPX1901DVX R Quarter Turn Straight Ball Stop, 1/2 x 3/8 x 3/8 in Nominal, Handle Actuator, 125 psi
BrassCraft® KTBRPX1901DVX R Quarter Turn Straight Ball Stop, 1/2 x 3/8 x 3/8 in Nominal, Handle Actuator, 125 psi
BrassCraft® Quarter Turn Straight Ball Stop, 1/2 x 3/8 x 3/8 in Nominal, Crimp Barb x Compression x Compression Connection, 125 psi, PTFE/Rubber Softgoods, Brass Body, Zinc Handle, Handle Actuator, Finish: Rough Brass, 40 to 180 deg F, 3.35 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$93.69 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBrassCraft®
Actuator TypeHandle
ApplicationFor residential and commercial applications
Body MaterialBrass
Connection TypeCrimp Barb x Compression x Compression
Dimensions3.35 " H
FinishRough Brass
Handle MaterialZinc
Nominal Size1/2 x 3/8 x 3/8
Pressure Rating125
Softgoods MaterialPTFE/Rubber
Temperature Rating40 to 180
Additional Information
ASME A112.18.1|CSA B125.1|cUPC Certified|IAPMO Listed
Features & Benefits
- Independent flow control, dual outlet, dual shut-off operation permits water flow to be controlled at one fixture while maintaining flow to the other fixture Machined brass ball is specially engineered and mated with PTFE seats to provide smooth operation Two high-performance O-rings withstand high-temperatures and corrosion Forged one-piece brass body provides strength, durability and long-lasting performance Brass stems are assembled from the inside out with two O-rings to ensure safe, reliable performance Plated stem provides corrosion-resistance and prevents O-ring damage Metal handles are designed for durability, corrosion-resistance and a sleek appearance Easy-to-remove handle with screw attachment helps protect against accidental stop operation during rough-in 100% leak tested PEX end designed to ASTM F1807 For use with ASTM F876 PEX tubing, in ASTM F877 water distribution systems using ASTM F1807 and/or F2098 connection methods
Documents
BrassCraft® KTBRPX1901DVX R Quarter Turn Straight Ball Stop, 1/2 x 3/8 x 3/8 in Nominal, Handle Actuator, 125 psi
BrandBrassCraft®
MFG #KTBRPX1901DVX R
Keller #915824
