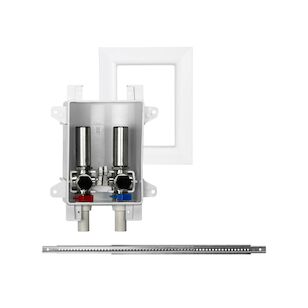

Sioux Chief OxBox™ 696-G2011CF Dual Valve Outlet Box With Frame and Arrester, 1/2 in, CPVC Male, 3/8 in Valve, ABS Box
Sioux Chief OxBox™ 696-G2011CF Dual Valve Outlet Box With Frame and Arrester, 1/2 in, CPVC Male, 3/8 in Valve, ABS Box
Sioux Chief Dual Valve Outlet Box With Frame and Arrester, 696 Series, 1/2 in Connection, CPVC Male Connection, 3/8 in Valve, Quarter-Turn Ball Valve, 4 in Box Width, 3-1/2 in Box Depth, 5-1/2 in Box Height, ABS Box, 5-7/8 in Faceplate Width, 7-1/4 in Faceplate Height, ABS Faceplate, Brass Valve, Additional Information: 150 psig Working Pressure, 200 deg F Working Temperature, Standard Pack, Outlet Box, Frame, Bracket and Debris Cover
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$77.32 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Additional Information150 psig Working Pressure, 200 deg F Working Temperature, Standard Pack, Outlet Box, Frame, Bracket and Debris Cover
Box Depth3-1/2
Box Height5-1/2
Box MaterialABS
Box Width4
Connection Size1/2
Connection TypeCPVC Male
Faceplate Height7-1/4
Faceplate MaterialABS
Faceplate Width5-7/8
IndustryPlumbing
Series696 Series
Valve MaterialBrass
Valve Size3/8
Valve TypeQuarter-Turn Ball
Additional Information
ASME A112.18.1|ASSE 1010|IAPMO Listed|NSF 372
Features & Benefits
- Durable ABS box mounts securely to stud or between studs Quarter-turn ball valves with 3/8" OD compression connection Included debris covers protect box/valve from dust, mud, and paint
Documents
Marketing Information
Sioux Chief 696 series OxBox™ outlet box shall be used where necessary in plumbing systems. Unit shall allow for mounting with supply lines from top or bottom, on-stud or between-studs. Unit shall include plated, 1/4-turn valves with 3/8" compression outlet. Valve outlets shall be provided with tamperresistant test caps. Metal support bracket can be installed into tracks of box. Designed in accordance with IAPMO PS 54-2021a.
Sioux Chief OxBox™ 696-G2011CF Dual Valve Outlet Box With Frame and Arrester, 1/2 in, CPVC Male, 3/8 in Valve, ABS Box
BrandSioux Chief
MFG #696-G2011CF
Keller #917118
My Part ##
Last Ordered#
$77.32 / ea
