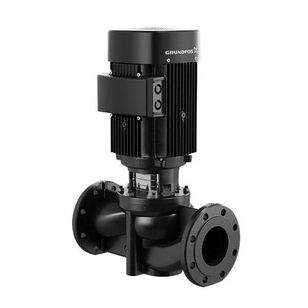

Grundfos TP Series TP 40-240/2 96758129 Circulator Pump, 63 gpm, 1.1 kW, 208-230YY/460Y V, 2.3/4.6 to 4.7 A, 60 Hz, Iron
Grundfos TP Series TP 40-240/2 96758129 Circulator Pump, 63 gpm, 1.1 kW, 208-230YY/460Y V, 2.3/4.6 to 4.7 A, 60 Hz, Iron
Grundfos Circulator Pump, TP Series, Model: TP 40-240/2, 63 gpm Flow Rate, 1.1 kW, 208-230YY/460Y V, 2.3/4.6 to 4.7 A, 60 Hz, 145.04 psi Maximum Pressure, 3450 to 3480 rpm Motor Speed Rating, 1.15 Service Factor, 1-1/2 hp, 1-1/2 in Connection, Flanged Connection, 3.86 in Impeller Diameter, 3 ph Phase, 2 Poles, -13 to 140 deg F, Iron, Finish: Electro-Coated, 19-1/16 in H x 13-1/2 in W, Additional Information: F Insulation Class, 1-Stage, 80BA Motor, Stainless Steel Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,752.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional InformationF Insulation Class, 1-Stage, 80BA Motor, Stainless Steel Impeller Material
Amperage Rating2.3/4.6 to 4.7
Connection Size1-1/2
Connection TypeFlanged
Dimensions19-1/16 " H x 13-1/2 " W
FinishElectro-Coated
Flow Rate63
Frequency Rating60
HP Rating1-1/2
Impeller Diameter3.86
MaterialIron
Maximum Pressure145.04
ModelTP 40-240/2
Motor Speed Rating3450 to 3480
Number of Poles2
Phase3
Power Rating1.1
SeriesTP Series
Service Factor1.15
Temperature Rating-13 to 140
Voltage Rating208-230YY/460Y
Additional Information
AISI 304|ASTM 25B|CE Marked|cULus Listed|DIN W.-Nr. 1.4301|EAC/IE3 Certified|EN JL1040
Features & Benefits
- Single stage centrifugal inline single head pump Neck rings and impeller made of stainless steel Cataphoresis treatment Shell coupling Top pull out principle for easy maintenance Optimized hydraulics Inline design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation Corrosion-resistant maintenance-free mechanical shaft seal
Documents
Marketing Information
Grundfos TP pumps are single-stage, close coupled inline centrifugal pumps with mechanical shaft seal and primely for applications such as heating, cooling, district energy. The pumps are fitted with fixed speed motors.
Grundfos TP Series TP 40-240/2 96758129 Circulator Pump, 63 gpm, 1.1 kW, 208-230YY/460Y V, 2.3/4.6 to 4.7 A, 60 Hz, Iron
BrandGrundfos
MFG #96758129
Keller #917660
My Part ##
Last Ordered#
$5,752.00Â /Â ea
