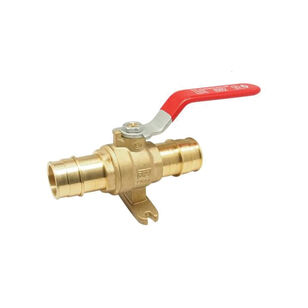

RWV® ECO-VALVE 5015AB Series 5015ABF-1/2 Ball Valve With Footprint, 1/2 in, PEX, Brass, 400 psi
RWV® ECO-VALVE 5015AB Series 5015ABF-1/2 Ball Valve With Footprint, 1/2 in, PEX, Brass, 400 psi
RWV® ECO-VALVE Ball Valve With Footprint, 5015AB Series, 1/2 in Nominal, PEX Connection, Full Port, 400 psi, Gas, Oil, Water Media, 2.48 in Inlet to Outlet Length, 1.38 in Top to Inlet Center, 0.39 in Opening, Handle Operator, Material Standard: ASTM F1960, ASTM B927 C27453, A36, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, NBR Packing, Steel Handle, Brass Ball, NBR/PTFE Softgoods, Lead-Free, 15 to 160 deg F, 2.48 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$24.84 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
ApplicationFor PEX tubing
Ball MaterialBrass
Body MaterialBrass
Connection TypePEX
Dimensions2.48 " L
Domestic/ImportDomestic
Handle MaterialSteel
Inlet to Outlet Length2.48
Material StandardASTM F1960, ASTM B927 C27453, A36
MediaGas, Oil, Water
Nominal Size1/2
Opening Size0.39
Operator TypeHandle
Packing MaterialNBR
Port TypeFull
Pressure Rating400
Seat MaterialPTFE
Series5015AB Series
Softgoods MaterialNBR/PTFE
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center1.38
Trim MaterialBrass/PTFE
Additional Information
California AB1953|CSA B125.3, B125.14|cTLus Listed|NSF/ANSI 61, 372
Features & Benefits
- Virgin PTFE seats Double NBR O-ring packing Blowout-proof stem
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
