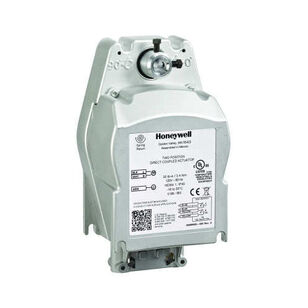

Honeywell MS8104F1010/U Damper Actuator, 24 VAC, 15 sec Nominal at 60 Hz Driving, 15 sec Spring Return Timing, Aluminum
Honeywell MS8104F1010/U Damper Actuator, 24 VAC, 15 sec Nominal at 60 Hz Driving, 15 sec Spring Return Timing, Aluminum
Honeywell Damper Actuator, 24 VAC, 50/60 Hz, 16 V-A Driving, 8 V-A Holding VA, Color Coded Lead Electrical Connection, 15 sec Nominal at 60 Hz Driving, 15 sec Spring Return Timing, Aluminum, 30 in-lb Torque, 80 dBA Driving, 20 dBA Holding, 0 - 130 deg F Ambient, NEMA 1, IP40 Enclosure, 5 - 95% RH Non-Condensing Humidity, 5.13 in W x 8.9 in H x 3.32 in D, 2-Position SPST Control Signal, Direct Coupled Mounting, Round Shaft Design, 1/2 in Shaft, 95 +/-3 deg Stroke
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$507.81Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
ApplicationFor fire and smoke control
Control Signal2-Position SPST
Dimensions5.13 " W x 8.9 " H x 3.32 " D
Electrical ConnectionColor Coded Lead
Enclosure TypeNEMA 1, IP40
Frequency Rating50/60
Humidity Rating5 - 95% RH Non-Condensing
IndustryHVAC
MaterialAluminum
Mounting TypeDirect Coupled
Noise Level80 dBA Driving, 20 dBA Holding
Shaft DesignRound
Shaft Size1/2
Stroke95 +/-3 deg
Temperature Rating0 - 130 deg F Ambient
Timing Range15 sec Nominal at 60 Hz Driving, 15 sec Spring Return
Torque Rating30
VA Rating16 V-A Driving, 8 V-A Holding
Voltage Rating24
Additional Information
UL Listed, 873, cUL Listed, C22.2 Number 24-93 Certified, cUL Listed, N314 C-Tick Approval
Features & Benefits
- Reversible-mounting facilitates use in either clockwise (CW) or counter clockwise (CCW) spring rotation Integral spring return ensures level of return torque No special cycling required during long-term holding No audible noise during holding Patent pending design eliminates need for limit switches to reduce power consumption Actuator holds rated torque at reduced power level Housing design allows flush-mounting to damper Aluminum hub, (2) set screws shaft adapter type
Documents
Marketing Information
The Honeywell fast-acting, 2-position actuators are 24 V, 30 lb-in, spring return direct coupled actuators (DCA) for fire and smoke dampers (on/off control). The actuator accepts an on/off signal from a SPST controller. Reversible mounting allows actuator to be used for either clockwise (CW) or counterclockwise (CCW) spring rotation.
Honeywell MS8104F1010/U Damper Actuator, 24 VAC, 15 sec Nominal at 60 Hz Driving, 15 sec Spring Return Timing, Aluminum
BrandHoneywell
MFG #MS8104F1010/U
Keller #919908
