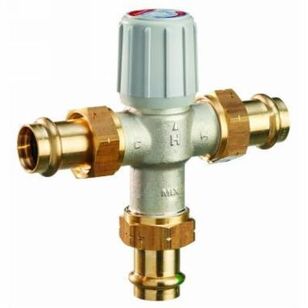

Honeywell AM-1 Series AM101-UP-1LF/U Thermostatic Mixing Valve, 3/4 in, Union ProPress, 150 psi, Brass, Lead-Free
Honeywell AM-1 Series AM101-UP-1LF/U Thermostatic Mixing Valve, 3/4 in, Union ProPress, 150 psi, Brass, Lead-Free
Honeywell Thermostatic Mixing Valve, AM-1 Series, 3/4 in Nominal, Union ProPress Connection, 150 psi, 3.9 Cv Flow Coefficient (Cv), EPDM Seal, Brass, Finish: PTFE-Coated/Nickel-Plated, 3.6 in Top to Inlet Center, Lead-Free, 70 to 145 deg F, 6.3 in L x 6.2 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$431.01Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Connection TypeUnion ProPress
Dimensions6.3 " L x 6.2 " H
FinishPTFE-Coated/Nickel-Plated
Flow Coefficient (Cv)3.9
MaterialBrass
Nominal Size3/4
Pressure Rating150
Seal MaterialEPDM
SeriesAM-1 Series
Temperature Rating70 to 145
Top to Inlet Center3.6
Additional Information
ASSE 1017|CSA/IAPMO Certified|US Patent Number 6, 079, 625
Features & Benefits
- Features dual purpose mixing or diverting values Offers constant water temperature under changing operating conditions Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds Provides reliable performance at minimum flow of 0.5 gpm and proportional valve for simultaneous control of hot and cold Designed for easy maintenance and PTFE-coating prevents mineral build up and extends life Temperature gauge adapter in lead-free brass material with EPDM O-ring Straight through (hot and cold at the same level) design PTFE-coated low-lead brass shuttle
Marketing Information
Honeywell AM-1 series adjusts, maintains and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
Honeywell AM-1 Series AM101-UP-1LF/U Thermostatic Mixing Valve, 3/4 in, Union ProPress, 150 psi, Brass, Lead-Free
BrandHoneywell
MFG #AM101-UP-1LF/U
Keller #922772
My Part ##
Last Ordered#
$431.01Â /Â ea
