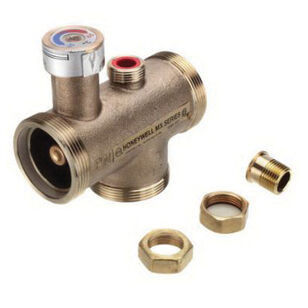

resideo MX Series MX128LF/U Thermostatic Mixing/Diverting Valve, 1-1/4 in, Union NPT, 2.5 gpm, 150 psi, PTFE-Coated
resideo MX Series MX128LF/U Thermostatic Mixing/Diverting Valve, 1-1/4 in, Union NPT, 2.5 gpm, 150 psi, PTFE-Coated
resideo Thermostatic Mixing/Diverting Valve, Series: MX Series, 1-1/4 in Nominal, Union NPT Connection, 2.5 gpm Flow Rate, 150 psi, 9.3 Cv Flow Coefficient (Cv), Bronze/Stainless Steel, Finish: PTFE-Coated, Cold and Hot Water Service, Water Media, 3.3 in Top to Inlet Center, Diverting, Mixing Valve, Lead-Free, 113 to 149 deg F, 7.7 in L, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,579.76Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Connection TypeUnion NPT
Dimensions7.7 " L
Domestic/ImportImport
FinishPTFE-Coated
Flow Coefficient (Cv)9.3
Flow Rate2.5
IndustryHVAC
Lead-FreeYes
MaterialBronze/Stainless Steel
MediaWater
Nominal Size1-1/4
Pressure Rating150
SeriesMX Series
Service TypeCold and Hot Water
Temperature Rating113 to 149
Top to Inlet Center3.3
Valve TypeDiverting, Mixing
Additional Information
ASSE 1017|CSA Certified
Features & Benefits
- Dual purpose mixing or diverting valve Constant water temperature under different operating conditions Proportional valve (control of hot and cold water) Flow reduction in seconds if cold water supply is interrupted Maintains temperature with extremely low minimum flows Temperature adjustable, tamper evident Install in any position, heat trapping not required Recirculation connection for fast response Bronze/stainless construction Wear surfaces PTFE coated to prevent deposit build-up Union/tailpiece connections included Tapped flange connections 2-1/2 in. and 3 in Allen wrench for temperature adjustment included ASSE 1017 and CSA listed (Union Models)
Documents
Marketing Information
The MX Series is a state-of-the-art mixing valve that manages the hot and cold supply based on control settings. Accurate control of temperature provides energy savings, increased comfort and safety. The PTFE wear surfaces prevent calcium buildup.
resideo MX Series MX128LF/U Thermostatic Mixing/Diverting Valve, 1-1/4 in, Union NPT, 2.5 gpm, 150 psi, PTFE-Coated
BrandHoneywell
MFG #MX128LF/U
Keller #922884
My Part ##
Last Ordered#
$2,579.76Â /Â ea
