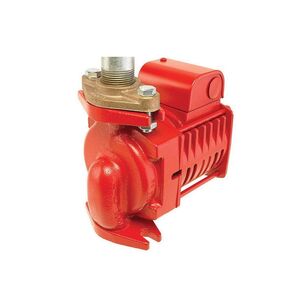

ARMSTRONG E.2 Series E11.2B 182202-652 Circulator Pump, 0 to 45 gpm, 125 W, 120 V, 2 A, 60 Hz, 150 psi Max Pressure
MFG #182202-652
Item #923211
Mfr. Part #182202-652
UPC #
ARMSTRONG Circulator Pump, E.2 Series, Model: E11.2B, 0 to 45 gpm Flow Rate, 0 to 31.9 ft Maximum Head, 125 W, 120 V, 2 A, 60 Hz, 150 psi Maximum Pressure, 3300 rpm Motor Speed Rating, 1/6 hp, 1-1/2 in Connection, 2-Bolt Flanged Connection, 1 ph Phase, 2 Poles, 230 deg F, Bronze, 7.5 in L x 4.2 in W x 8.5 in H, Additional Information: Glass-Filled Noryl Impeller Material
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
Call for Price / ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandARMSTRONG
Additional InformationGlass-Filled Noryl Impeller Material
Amperage Rating2
Connection Size1-1/2
Connection Type2-Bolt Flanged
Dimensions7.5 " L x 4.2 " W x 8.5 " H
Flow Rate0 to 45
Frequency Rating60
HP Rating1/6
IndustryPlumbing
MaterialBronze
Maximum Head0 to 31.9
Maximum Pressure150
ModelE11.2B
Motor Speed Rating3300
Number of Poles2
Phase1
Power Rating125
SeriesE.2 Series
Temperature Rating230
Voltage Rating120
Additional Information
NSF 372
Features & Benefits
E.2 Series circulators have been re-designed to improve durability and provide enhanced protection against leakage and water damage to electrical components
Larger, stainless steel shaft
New sealed, permanently lubricated bearings
Bellows-style mechanical seal with silicon carbide wear surfaces
New water slinger to protect motor against water intrusion
EPDM volute gasket
Easy on site seal replacement means you can repair an E.2 Series pump rather than throwing it away and installing a replacement
