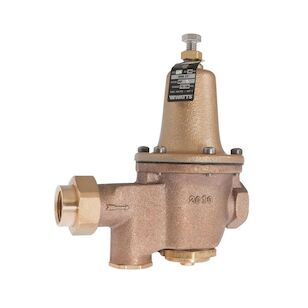

1 1/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female High Pressure Range 75-100 psi Gauge Tapping
1 1/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female High Pressure Range 75-100 psi Gauge Tapping
1 1/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female High Pressure Range 75-100 psi Gauge Tapping
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,812.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi25 to 75
Depth8.5"
Disc MaterialReinforced EPDM
Height9.63"
High Pressure Reduced Pressure Range75 to 100 psi
High Pressure Reduced Pressure Setting75 psi
IndustryPlumbing
Inlet Connection Size1-1/4"
Inlet Connection TypeUnion Joint
Inlet Thread TypeNPT
MaterialBrass
Maximum Temperature Deg F160
Maximum Working Pressure Psi300
Minimum Temperature Deg F33
Outlet Connection Size1-1/4"
Outlet Connection Thread TypeNPT
Outlet Connection TypeFemale Threaded
Prop 65 WarningYes
SeriesLFU5B-Z3
Standard Reduced Pressure Setting Psi50
StrainerYes
Strainer MaterialStainless Steel
Thermal Expansion BypassYes
Valve StyleStandard
Weight1.6 lbs.
Width4.5"
Shipping Dimensions (L x W x H)8.5" x 4.5" x 9.63"
Features & Benefits
- Sealed spring cage with stainless steel cage screws
- Integral stainless steel strainer removable for cleaning
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
Documents
Marketing Information
This 1 1/4 inch lead free high performance water pressure reducing valve is equipped for high pressure ranges with gauge tapping. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The high pressure range is 75-100 psi (518 to 690 kPa) with the standard setting at 90 psi (621 kPa).
