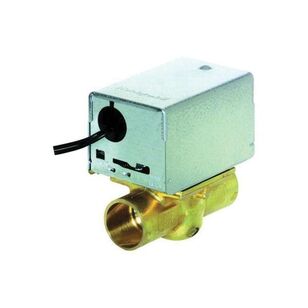

Honeywell V4043 Series V4043A1184/U Valve, 1/2 in, 1 Cv, Brass
Honeywell V4043 Series V4043A1184/U Valve, 1/2 in, 1 Cv, Brass
Honeywell Valve, V4043 Series, 1/2 in Nominal, Number of Ways/Position: 2-Ways, 50 psi, 1 Cv Flow Coefficient (Cv), Stainless Steel Stem, EPDM Packing, Buna-N Disc, Brass Seat, Brass, 15 s Cycle Time, Normally Open, Normally Closed, 0.08 A, 120 VAC, 40 to 200 deg F, 4 in H x 3-1/2 in W x 2-3/8 in D, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$349.84Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
Brandresideo
Amperage Rating0.08
ConfigurationNormally Open, Normally Closed
Cycle Time15
Dimensions4 " H x 3-1/2 " W x 2-3/8 " D
Disc MaterialBuna-N
Domestic/ImportImport
Flow Coefficient (Cv)1
IndustryHVAC
MaterialBrass
Nominal Size1/2
Number of Ways/Position2-Ways
Packing MaterialEPDM
Pressure Rating50
Seat MaterialBrass
SeriesV4043 Series
Stem MaterialStainless Steel
Temperature Rating40 to 200
Voltage Rating120
Additional Information
UL Listed, MH11826
Features & Benefits
- Two way on-off line voltage valves consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure, valve returns to automatic position when power is restored All model may be installed without disassembling the valve Compact construction for easy installation Complete power head may be removed or replaced without breaking plumbing line connections or draining the system Motor may be replaced without removing the valve body or draining the system Suitable for heating and cooling applications Buna-N (NBR) rubber ball plug/ball 9.6 VA power consumption 5 to 95% relative humidity non-condensing 15 s nominal open 60 Hz frequency 125 deg F maximum ambient temperature Normally closed de-energized position
Honeywell V4043 Series V4043A1184/U Valve, 1/2 in, 1 Cv, Brass
Brandresideo
MFG #V4043A1184/U
Keller #929093
My Part ##
Last Ordered#
$349.84Â /Â ea
