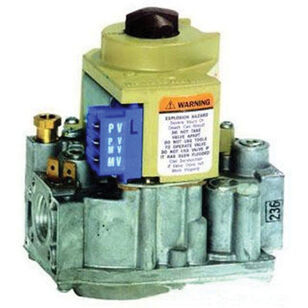

Honeywell VR8204 Series VR8204H1006/U Combination Gas Control Valve, 1/2 in, 0.5 psi
Honeywell VR8204 Series VR8204H1006/U Combination Gas Control Valve, 1/2 in, 0.5 psi
Honeywell Combination Gas Control Valve, VR8204 Series, 1/2 in Nominal, 0.5 psi Pressure, 1 Stage, Intermittent Pilot Ignition, Electrical Connection: 1/4 in Quick-Connect Male Terminal, 24 VAC at 60 Hz, 20000 to 200000 Btu/hr, 150000 Btu/hr at 1 in-WC Pressure Drop Nominal, Natural Gas Fuel, NPT with Plug Pressure Tap, Compression Pilot Hose Connection, 0 to 175 deg F, Dimensions: 4-5/8 in H x 4-1/8 in W x 2-11/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$553.87Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Dimensions4-5/8 " H x 4-1/8 " W x 2-11/16 " D
Electrical Connection1/4 " Quick-Connect Male Terminal
Fuel TypeNatural Gas
Hose Connection TypeNPT with Plug Pressure Tap, Compression Pilot
Ignition TypeIntermittent Pilot
Nominal Capacity20000 to 200000 Btu/hr, 150000 Btu/hr at 1 "-WC Pressure Drop
Nominal Size1/2
Number of Stages1
Pressure Rating0.5
SeriesVR8204 Series
Temperature Rating0 to 175
Voltage Rating24 VAC at 60 Hz
Additional Information
UL MCCZ2.MH5323|CSA 112395|Australian Gas Association 4752
Features & Benefits
- Controls includes safety shut-off, manual valve, two automatic operators, pressure regulator and pilot adjustment Provides (2) automatic valves Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted Meets codes requiring dual safety shut-off All adjustments, wiring connections and pilot outlet are accessible from top of gas control Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure Compatible with Eco connector On-off lighting sequence 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically-mounting Straight through configuration
Marketing Information
Combination gas controls for use in 24 VAC, gas-fired, intermittent pilot appliances with capacities from 20 to 200 cfh.
Honeywell VR8204 Series VR8204H1006/U Combination Gas Control Valve, 1/2 in, 0.5 psi
BrandHoneywell
MFG #VR8204H1006/U
Keller #929204
My Part ##
Last Ordered#
$553.87Â /Â ea
