SCI 1 BLK IMI 90 ELL
SCI 1 BLK IMI 90 ELL

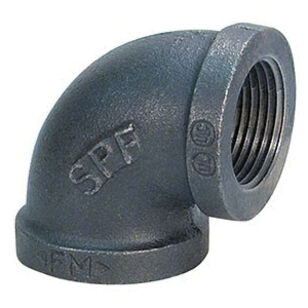

SCI® 90 deg Elbow, Series: FIG 3101 Series, 90 deg Elbow Fitting, 1 in Connection Size 1, FNPT Connection Type 1, 1 in Connection Size 2, FNPT Connection Type 2, FNPT|FNPT Connection Type, Iron, Malleable Iron Material Construction, Black, Pressure Class: 150 lb, 300 psi, ASME B16.3/B1.20.1 Dimension Standards
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$48.90 / ea
In Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandSCI®
Connection Size 11
Connection Size 21
Connection TypeFNPT|FNPT
Connection Type 1FNPT
Connection Type 2FNPT
Dimension StandardsASME B16.3/B1.20.1
FinishBlack
Fitting Type90 deg Elbow
IndustryPlumbing
MaterialIron
Material ConstructionMalleable Iron
Pressure Class150
Pressure Rating300
SeriesFIG 3101 Series
Additional Information
ASTM A153|ASTM A197|FM Approved|UL Listed
Documents
Marketing Information
SCI® malleable iron pipe fittings conform to ASME B16.3 dimensions and pressure ratings. Unions conform to ASME B16.39, while bushings and plugs conform to ASM B16.14. All SCI® malleable iron fittings are tested for through wall porosity using an air under water process. Malleable iron Class 150 and Class 300 Pipe Fittings are UL Listed and FM Approved.
SCI 1 BLK IMI 90 ELL
BrandSCI®
MFG #0810001206
Keller #93095
My Part ##
Last Ordered#
$48.90 / ea
