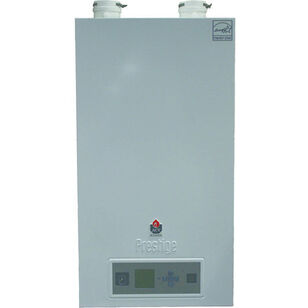

TT PA155 SOLO 155 W/ ACVMAX CONTROL NG/LP WALL MOUNT BOILER 155000 BTU ***NO MANUFACTURER WARRANTY. NO WARRANTY FROM KELLER SUPPLY. PRODUCT
TT PA155 SOLO 155 W/ ACVMAX CONTROL NG/LP WALL MOUNT BOILER 155000 BTU ***NO MANUFACTURER WARRANTY. NO WARRANTY FROM KELLER SUPPLY. PRODUCT
Triangle Tube Gas Fired Water Boiler, 120 VAC, 95 % AFUE, 153000 Btu/hr BTU, 4 gal Capacity, 1-1/4 in NPT Supply/Return, 3/4 in NPT Gas Connection, Natural Gas, Propane Gas Fuel, Direct Exhaust Vent, Chimney/Breeching/Vent Size: 3 in, Direct Spark Ignition, Net BTU Rating: 120 MBtu/hr, Wall Mounting, Stainless Steel, Dimensions: 36-9/16 in H x 19-3/4 in W x 17-5/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,331.00Â /Â ea
In Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandTriangle Tube
AFUE Rating95%
BTU Rating153000 Btu/hr
Capacity4 gal
Chimney/Breeching/Vent Size3"
Connection Type1-1/4" NPT Supply/Return, 3/4" NPT Gas
Dimensions36-9/16" H x 19-3/4" W x 17-5/16" D
Energy Star RatedYes
Fuel TypeNatural Gas, Propane Gas
Ignition TypeDirect Spark
IndustryHydronics
MaterialStainless Steel
Mounting TypeWall
Net BTU Rating120 MBtu/hr
Vent TypeDirect Exhaust
Voltage Rating120 VAC
Warranty10 Year Limited
Features & Benefits
- Lightweight construction for wall-mounting
- Approved for zero clearance to combustibles
- Stainless steel fire tube heat exchanger - 439 stainless steel with titanium heat exchanger construction for corrosion-resistance, low pressure drop minimizes circulator size, high water content provides stable temperature control, self-cleaning flue ways reduce maintenance, suitable for use with propylene glycol up to 50% concentration
- ACVMax control system graphical display with six-navigation buttons, EZ setup allows quick and easy boiler settings adjustment, presets allow quick configuration of two-circulator outputs, outdoor temperature reset to maximize efficiency, accepts two-space heating call inputs with independent outdoor reset curves
- 0 - 10 VDC modulation input, logging function records sensor readings for system optimization and troubleshooting and describes lockouts in plain English and suggests solutions while storing last 8 errors
- Stainless steel premix burner
- Direct spark ignition with variable speed blower
- Full modulation with turndown ratio of 5.5:1
- Automatic air vents
- 30 lb/sq-in ASME pressure relief valve
- Integrated pressure and temperature gauge
- Outdoor temperature sensor
- Automatic low water cut-off feature with early warning
- High temperature limit safety control
- Terminal block for circulator output
- Low voltage terminal strip with removable jumpers for manual or automatic reset limits
- Swing out control for easy access and servicing
- Alarm and flame status contacts
- Polypropylene condensate pan and internal flue pipe
- Polypropylene vent/air connections with test ports
TT PA155 SOLO 155 W/ ACVMAX CONTROL NG/LP WALL MOUNT BOILER 155000 BTU ***NO MANUFACTURER WARRANTY. NO WARRANTY FROM KELLER SUPPLY. PRODUCT
BrandTriangle Tube
MFG #PA155
Keller #932262
