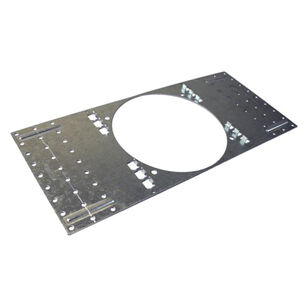

HoldRite® HydroFlame™ Pro Series HFPCD6 Corrugated Metal Deck Plate, Steel, Galvanized
HoldRite® HydroFlame™ Pro Series HFPCD6 Corrugated Metal Deck Plate, Steel, Galvanized
HoldRite® Deck Plate, Series: HydroFlame™ Pro Series, 4 to 6 in NPS Pipe Size, Steel, Galvanized, 14 in Length, 8-7/8 in Width, 0.3 in Height, For Use With: HFP-P/M6, HFP-P/M6B, HFP-H7, HFP-H7B Firestop Sleeves, Additional Information: 8-5/8 in Deck Hole, Metal Penetrating Pipe
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$14.98 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoldRite®
Additional Information8-5/8 " Deck Hole, Metal Penetrating Pipe
FinishGalvanized
Height0.3
Length14
MaterialSteel
SeriesHydroFlame Pro Series
Specifications4 to 6 " NPS Pipe Size
Suitable For Use WithHFP-P/M6, HFP-P/M6B, HFP-H7, HFP-H7B Firestop Sleeves
Width8-7/8
Shipping Dimensions (L x W x H)14" x .25" x 9"
Additional Information
cULus Listed|FBC System Compatible|UL R25101
Features & Benefits
- CD plate snaps onto the bottom of HFP series sleeves providing a durable, sturdy connection 18 ga galvanized steel material construction Must be ordered with HydroFlame™ Pro Series sleeves Use of a CD plate must be accompanied with use of an outer sleeve or sleeve extension Easily connects onto HydroFlame™ Pro Series firestop sleeve Made of metal and snaps onto the bottom of the sleeve, providing superior strength and stability Quickly install with coordinating sleeve to create a flat surface
Documents
Marketing Information
For use with concrete pours over corrugated metal decks, these deck plates assemble directly to HydroFlame™ Pro Series firestop sleeves to bridge the gaps between the upper and lower flutes on a corrugated metal deck project, creating a flat surface.
HoldRite® HydroFlame™ Pro Series HFPCD6 Corrugated Metal Deck Plate, Steel, Galvanized
BrandHoldRite®
MFG #HFPCD6
Keller #934628
My Part ##
Last Ordered#
$14.98 / ea
