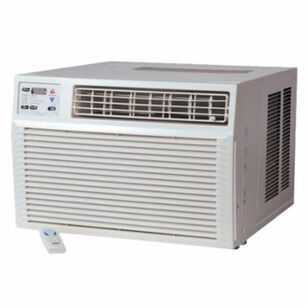

Amana® AH Series AH123G35AX Heat Pump, 11600 Btu/hr Cooling, 10700 Btu/hr Heating BTU, 208 to 230 V, 2770 to 3580 W
Amana® AH Series AH123G35AX Heat Pump, 11600 Btu/hr Cooling, 10700 Btu/hr Heating BTU, 208 to 230 V, 2770 to 3580 W
Amana® Heat Pump, AH Series, 208 to 230 V, 5.1 to 5.3 A Cooling, 14.6 to 16 A Electric Heater, 2770 to 3580 W, 60 Hz, 1 ph Phase, 11600 Btu/hr Cooling, 10700 Btu/hr Heating, 280 cfm, 9.9 EER Rating, R-410A Refrigerant, 20 A Fuse Rating, 2.5 pt/hr Dehumidification, 15-3/8 in H x 22-5/8 in W x 24 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,333.24 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
Attributes
BrandAmana®
Amperage Rating5.1 to 5.3 A Cooling, 14.6 to 16 A Electric Heater
BTU Rating11600 Btu/hr Cooling, 10700 Btu/hr Heating
CFM Rating280
Dehumidification2.5
Dimensions15-3/8 " H x 22-5/8 " W x 24 " D
EER Rating9.9
Frequency Rating60
Fuse Rating20
IndustryHVAC
Phase1
Power Rating2770 to 3580
Refrigerant TypeR-410A
SeriesAH Series
Voltage Rating208 to 230
Additional Information
cULus Listed
Features & Benefits
- 3.5 kW heater capacity Slide-out for easy installation and service accessibility chassis Condensate drain spout on the wall sleeve Top discharge air 100% full factory run test on all units for high reliability and dependability Ball bearing fan motors that are reliable, start quickly and run quietly Easy-access slide out filter has a permanent polypropylene filter mesh that is easy to remove and clean Hydrophilic coating on evaporator and condenser coils on all models which allows better moisture removal, increased airflow, increased heat exchange, higher efficiencies and longer compressor life Electronic touch pad with remote control Solid bottoms on outer cases for full seal - thru-the-wall installation 4 ft LCDI power cord, perpendicular plug High, medium and low three-speed fan
