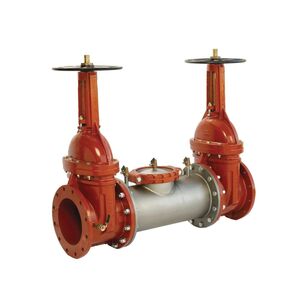

AMES® FIRE & WATERWORKS 2000SS Series 0690472 Double Check Valve Backflow Preventer, 2-1/2 x 2-1/2 in, Flanged x Flanged
AMES® FIRE & WATERWORKS 2000SS Series 0690472 Double Check Valve Backflow Preventer, 2-1/2 x 2-1/2 in, Flanged x Flanged
AMES® FIRE & WATERWORKS Double Check Valve Backflow Preventer, 2000SS Series, 2-1/2 x 2-1/2 in Nominal, Flanged x Flanged Connection, 175 psi, Water Media, 37 in Inlet to Outlet Length, 16-3/8 in Top to Inlet Center, Stainless Steel Body, Lead-Free, 33 to 110 deg F, Additional Information: OSY Shut-Off Valve
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,753.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandAMES® FIRE & WATERWORKS
Additional InformationOSY Shut-Off Valve
Body MaterialStainless Steel
Connection TypeFlanged x Flanged
IndustryPlumbing
Inlet Connection Size2 1/2 "
Inlet to Outlet Length37
Lead-FreeYes
MediaWater
Model Number2000SS-OSY 2 1/2
Nominal Size2-1/2 x 2-1/2
Outlet Connection Size2 1/2 "
Pressure Rating175
Series2000SS Series
Temperature Rating33 to 110
Top to Inlet Center16-3/8
Additional Information
AWWA C510-92|CSA B64.5|cULus Listed
Features & Benefits
- Stainless steel body One top entry access cover for easy maintenance Non-health hazard application No special tools are required Compact design Low pressure drop Modular construction The maximum working pressure is 175 psi (12.06 bar) The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25 percent) of lead by weight
Marketing Information
This 2 1/2 inch lead free double check valve backflow preventer assembly is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazard applications and from other contaminants found at the service line entrance. This compact and short lay length design with a single access cover for easy maintenance is approved for horizontal, vertical and retrofit installations. This assembly consists of a lightweight stainless steel body, outside stem and yoke resilient seated gate valves, spring loaded cam-check valves, and test cocks.
AMES® FIRE & WATERWORKS 2000SS Series 0690472 Double Check Valve Backflow Preventer, 2-1/2 x 2-1/2 in, Flanged x Flanged
BrandAMES® FIRE & WATERWORKS
MFG #0690472
Keller #938054
My Part ##
Last Ordered#
$7,753.00 / ea
