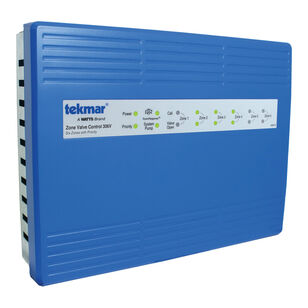

Tekmar® 306V Zone Valve Control With Priority, 6-Zone, 115 V, 7 VA
Tekmar® 306V Zone Valve Control With Priority, 6-Zone, 115 V, 7 VA
Tekmar® Zone Valve Control With Priority, 6 Zones, 115 V, 7 VA, 8-3/16 in Height, 10-11/16 in Width, 2-3/8 in Depth, For Use With: 2, 3 and 4-Wire Unlimited Zone Expansion Valves
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$462.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTekmar®
Depth2-3/8
Height8-3/16
Number of Zones6
Power Rating7
Suitable For Use With2, 3 and 4-Wire Unlimited Zone Expansion Valves
Voltage Rating115
Width10-11/16
Additional Information
ASSE Certified|cCSAus Certified|FM Approved|NSF Certified|UL Listed|ULC Listed|WQA Certified
Features & Benefits
- Zone priority, priority override RoomResponse™ signal, compatible with all low voltage thermostats Pump exercising, post purge Compatible with 2, 3 and 4-wire zone valves, unlimited zone expansion
Marketing Information
The zone valve control 306V connects up to six thermostats and operates zone valves to provide heating to a zoned hydronic heating system. The 306V operates a system pump whenever a zone valve opens. Zone 1 can operate either a zone valve or a circulator to provide heat to an indirect domestic hot water tank with optional priority over zones 2 through 6. The 306V includes optional exercising to prevent circulator seizure when not in use and optional post purge operation of the domestic hot water tank to maximize energy savings. The 306V provides a RoomResponse™ signal to modulating-condensing boilers to optimize comfort while improving boiler efficiency.
Tekmar® 306V Zone Valve Control With Priority, 6-Zone, 115 V, 7 VA
BrandTekmar®
MFG #306V
Keller #938920
