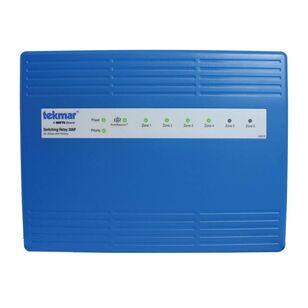

Switching Relay, Six Zones with Priority
Switching Relay, Six Zones with Priority
Switching Relay, Six Zones with Priority
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$634.00 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandTekmar®
Ambient Temperature Range32 to 122 degree F
Boiler Mix Modulating Output0 - 10 VDC, 500 Ohm Minimum Load Impedance, 4 - 20 mA, 1 kOhm Maximum Load Impedance
Control Load7 VA at 24 VAC
Control TypeMicroprocessor
Depth2.38"
Enclosure MaterialAbs,Galvanized Steel
FinishBlue
FusesT5A 250 V Slow Blow, (2) Spare Fuses Included
Height8.19"
Indoor OutdoorIndoor
IndustryPlumbing
NEMA RatingNEMA 1
Power Supply115 VAC plus /-10 percent , 60 Hz, 20 A
Prop 65 WarningYes
Relative Humidity<=90 percent Non-Condensing
RelayEnd Switch Relay: 24 VAC, 5 A, Pump Relay: 115 VAC, 5 A, 1/3 hp, 17.3 A Combined
SafetylistCSA C US
Suitable For Use WithLow Voltage Thermostats
Transformer40 VA at 24 VAC, Expandable to 80 VA with Additional Transformer M3069 (Sold Separately)
Width10.69"
Zone Valve Outputs24 VAC, 2 A Maximum per Output
Features & Benefits
- RoomResponse signal, compatible with all low voltage thermostats
- Top, bottom and back conduit knockouts
- Away signal shared between tekmar thermostats, four ground screws
- Post purge, LED for each zone, priority, end switch and RoomResponse
- Unlimited zone expansion, zone priority
- CSA approved
- Priority override, pump exercising
- Fuses protect transformers and pumps
- Two spare fuses included
Documents
Switching Relay, Six Zones with Priority
BrandTekmar®
MFG #306P
Keller #938922
