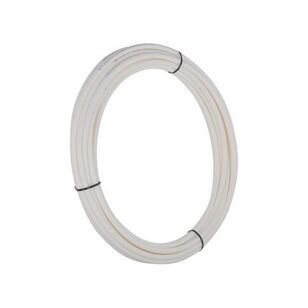

SharkBite™ U860W500 PEX-B Tubing Coil, 1/2 in, 500 ft L, Polyethylene, 0.07 in Thick Wall, 0.475 in ID, 5/8 in OD, White
SharkBite™ U860W500 PEX-B Tubing Coil, 1/2 in, 500 ft L, Polyethylene, 0.07 in Thick Wall, 0.475 in ID, 5/8 in OD, White
SharkBite™ PEX-B Tubing Coil, 1/2 in Nominal, 0.475 in Inside Diameter, 5/8 in Outside Diameter, 500 ft Length, Polyethylene, Material Construction: Polyethylene, White, 5 in Bend Radius, 0.07 in Wall Thickness, 160 psi Working Pressure, 33 to 200 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$0.65 / FT
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSharkBite™
ApplicationFor potable water, residential fire suppression, radiant heating, direct burial, embedment in concrete, snow and ice melting, geothermal ground-loops, turf conditioning, municipal water service lines, plenum application
Bend Radius5
ColorWhite
Inside Diameter0.475
Length500
MaterialPolyethylene
Material ConstructionPolyethylene
Nominal Size1/2
Outside Diameter5/8
Temperature Rating33 to 200
Wall Thickness0.07
Working Pressure160
Shipping Dimensions (L x W x H)26.5" x 26.5" x 8.5"
Additional Information
ASTM E84, E119, F876, F877|AWWA C904|CAN/ULC S101, S102.2|CSA B137.5|NSF/ANSI 14|NSF/ANSI/CAN 61
Features & Benefits
- PEX-B offers the highest-rated chlorine-resistance and six months UV-resistance Approved for water service lines and burial applications including being buried under concrete Approved for use with SharkBite™ EvoPEX™, SharkBite™ universal push-to-connect (ASSE 1061), plastic barb (ASTM F2159) and brass barb (ASTM F1807) fittings Certified to meet ASTM F2023 oxidative-resistance requirements for continuous hot water recirculation Made in the USA
Marketing Information
Faster installation compared to rigid pipe. Flexibility to bend pipe around corners, reducing the number of connection points needed. Available in coils up to 1000 ft in length, allowing longer runs and fewer connections - reducing cost, time and potential leak points. Freeze-resistant pipe can expand slightly if frozen and contract when thawed. Ideal for hot and cold potable water distribution, fire protection and municipal water service lines.
