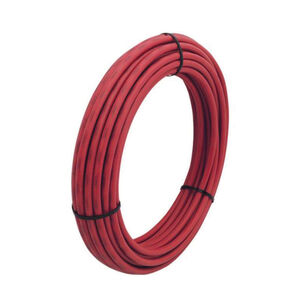

SharkBite™ U860R100W PEX-B Coil Tubing, 1/2 in, 100 ft L, Polyethylene, 0.07 in Thick Wall, 0.475 in ID, 5/8 in OD, Red
SharkBite™ U860R100W PEX-B Coil Tubing, 1/2 in, 100 ft L, Polyethylene, 0.07 in Thick Wall, 0.475 in ID, 5/8 in OD, Red
SharkBite™ PEX-B Coil Tubing, 1/2 in Nominal, 0.475 in Inside Diameter, 5/8 in Outside Diameter, 100 ft Length, Polyethylene, Material Construction: Polyethylene, Red, 0.07 in Wall Thickness, 160 psi Working Pressure, 33 to 70 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$0.65 / FT
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSharkBite™
ApplicationCommercial, Potable Water, Residential Fire Suppression, Radiant Heating, Direct Burial, Embedment In Concrete, Snow and Ice Melting, Geothermal Ground Loops, Turf Conditioning, Municipal Water Service Lines and Plenum Applications
ColorRed
IndustryPlumbing
Inside Diameter0.475
Length100
MaterialPolyethylene
Material ConstructionPolyethylene
Nominal Size1/2
Outside Diameter5/8
Temperature Rating33 to 70
Wall Thickness0.07
WarrantyLimited
Working Pressure160
Shipping Dimensions (L x W x H)27" x 27" x 2.25"
Additional Information
ANSI/NSF 14|ANSI/NSF/CAN 61|ASTM F876/F2023/F2657/F877/E84/E119|AWWA C904|cQAI Certified|CSA B137.5|cULC S102.2/S101|cUPC Certified|UL 1821
Features & Benefits
- PEX-B offers the highest-rated chlorine resistance and six months UV resistance Approved for water service lines and burial applications including being buried under concrete Approved for use with SharkBite™ EvoPEX™, SharkBite™ universal push-to-connect ASSE 1061, plastic barb ASTM F2159 and brass barb ASTM F1807 fittings Certified to meet ASTM F2023 oxidative resistance requirements for continuous hot water recirculation Made in the USA
Marketing Information
Faster installation compared to rigid pipe. Flexibility to bend pipe around corners. Available in coils up to 1000 ft in length, allowing longer runs and fewer connections - reducing cost, time and potential leak points. Freeze-resistant pipe can expand slightly if frozen and contract when thawed. Ideal for hot and cold potable water distribution, fire protection and municipal water service lines.
SharkBite™ U860R100W PEX-B Coil Tubing, 1/2 in, 100 ft L, Polyethylene, 0.07 in Thick Wall, 0.475 in ID, 5/8 in OD, Red
BrandSharkBite™
MFG #U860R100W
Keller #942633
My Part ##
Last Ordered#
$0.65 / FT
