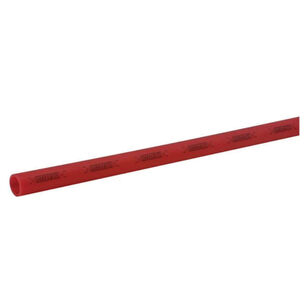

SharkBite™ U860R20 PEX-B Straight Length Pipe, 1/2 in, 20 ft L, Polyethylene, 0.07 in Thick Wall, 0.475 in ID, 5/8 in OD
SharkBite™ U860R20 PEX-B Straight Length Pipe, 1/2 in, 20 ft L, Polyethylene, 0.07 in Thick Wall, 0.475 in ID, 5/8 in OD
SharkBite™ PEX-B Straight Length Pipe, 1/2 in Nominal, 0.475 in Inside Diameter, 5/8 in Outside Diameter, 20 ft Length, Polyethylene, Material Construction: Polyethylene, Red, 0.07 in Wall Thickness, 160 psi Working Pressure, 33 to 70 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$0.70 / FT
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSharkBite™
ApplicationCommercial, Potable Water, Residential Fire Suppression, Radiant Heating, Direct Burial, Embedment In Concrete, Snow and Ice Melting, Geothermal Ground Loops, Turf Conditioning, Municipal Water Service Lines and Plenum Applications
ColorRed
Inside Diameter0.475
Length20
MaterialPolyethylene
Material ConstructionPolyethylene
Nominal Size1/2
Outside Diameter5/8
Temperature Rating33 to 70
Wall Thickness0.07
WarrantyLimited
Working Pressure160
Shipping Dimensions (L x W x H).63" x .63" x 246.5"
Additional Information
ANSI/NSF 14|ANSI/NSF/CAN 61|ASTM F876/F2023/F2657/F877/E84/E119|AWWA C904|cQAI Certified|CSA B137.5|cULC S102.2/S101|cUPC Certified|UL 1821
Features & Benefits
- PEX-B offers the highest-rated chlorine resistance and six months UV resistance Approved for water service lines and burial applications including being buried under concrete Approved for use with SharkBite™ EvoPEX™, SharkBite™ universal push-to-connect ASSE 1061, plastic barb ASTM F2159 and brass barb ASTM F1807 fittings Certified to meet ASTM F2023 oxidative resistance requirements for continuous hot water recirculation Made in the USA
Marketing Information
Faster installation compared to rigid pipe. Flexibility to bend pipe around corners. Available in coils up to 1000 ft in length, allowing longer runs and fewer connections - reducing cost, time and potential leak points. Freeze-resistant pipe can expand slightly if frozen and contract when thawed. Ideal for hot and cold potable water distribution, fire protection and municipal water service lines.
SharkBite™ U860R20 PEX-B Straight Length Pipe, 1/2 in, 20 ft L, Polyethylene, 0.07 in Thick Wall, 0.475 in ID, 5/8 in OD
BrandSharkBite™
MFG #U860R20
Keller #942689
My Part ##
Last Ordered#
$0.70 / FT
