ANSI/HI11.6:2017 3B2 Specified|ASTM A48 30B Specified|EN 1561 Specified|EN-GJL-200 Specified

• Cartridge shaft seal system, together with the polyurethane sealed cable plug system, prevent liquid from penetrating into the motor Compact construction with short shaft outside bearings, ensures less stress on bearings and, consequently, longer lifetime Double mechanical cartridge shaft seal system provides longer operating time and less downtime easy-to replace in the field without use of special tools Feet on the pump housing facilitate suction for free-standing installation Unique clamp system enables quick and easy dismantling of pump and motor unit and enables 180 deg rotation of motor housing Specially designed lifting handle ensures correct lifting regardless of installation or motor positioning Built-in thermal switches in the motor windings provide protection against overheating, ensuring a long lifetime Leakage detection for protection against water intrusions in case of component failure Patented grinder system ensures extremely high efficiency and reliable operation with quick and easy dismantling for replacement of wear parts Patented SmartTrim system enables quick and easy impeller clearance adjustment, without dismantling the pump, in order to maintain peak performance

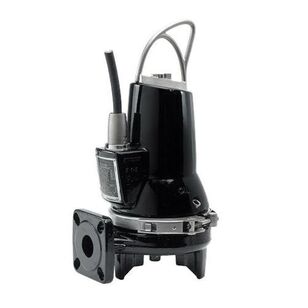

Non-self-priming, single-stage, centrifugal pump with horizontal discharge port, specifically designed for lift and pumping of wastewater containing discharge from toilets. The pump is equipped with a grinder system that grinds destructible solids into small pieces so that they can be led away through pipes of a relatively small diameter. The surface of the pump is smooth to prevent dirt and impurities from sticking to the pump. A corrosion-resistant stainless steel clamp is securing the motor to the pump housing and allow for ease of service of the pump. For maintaining maximum pump efficiency during the pump life, a SmartTrim system allows easy adjustment of impeller clearance.
