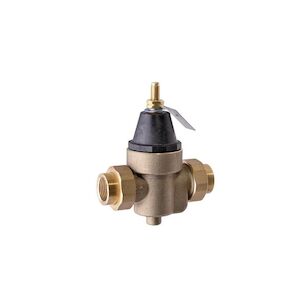

1 1/4 IN Lead Free Copper Silicon Water Pressure Reducing Valve Press Adjust 25-75 psi Max Work 300 psi
1 1/4 IN Lead Free Copper Silicon Water Pressure Reducing Valve Press Adjust 25-75 psi Max Work 300 psi
1 1/4 IN Lead Free Copper Silicon Water Pressure Reducing Valve Press Adjust 25-75 psi Max Work 300 psi
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,232.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi25 to 75
Disc MaterialEPDM
Entry StyleSingle Top
IndustryPlumbing
Inlet Connection Size1-1/4"
Inlet Connection TypePress
MaterialCopper Silicon
Maximum Temperature Deg F180
Maximum Working Pressure Psi300
Minimum Temperature Deg F33
Outlet Connection Size1-1/4"
Outlet Connection TypePress
Prop 65 WarningYes
SeriesLFN45B-L
Standard Reduced Pressure Setting Psi50
StrainerYes
Strainer MaterialStainless Steel
Thermal Expansion BypassYes
Valve StyleStandard
Weight5.96 lbs.
Features & Benefits
- Viega ProPress (R) connections
- Integral stainless steel strainer removable for cleaning
- Thermoplastic seat and cage
- Sealed spring cage for accessible outdoor or pit installations
Documents
Marketing Information
This 1 1/4 inch water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free brass body construction, with Viega ProPress (R) connections, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
1 1/4 IN Lead Free Copper Silicon Water Pressure Reducing Valve Press Adjust 25-75 psi Max Work 300 psi
BrandWATTS®
MFG #0125580
Keller #945068
