3/4 IN Lead Free Hot Water Temperature Control Valve Press x Press Adjustable Temperature Range 90-160 F
3/4 IN Lead Free Hot Water Temperature Control Valve Press x Press Adjustable Temperature Range 90-160 F
3/4 IN Lead Free Hot Water Temperature Control Valve Press x Press Adjustable Temperature Range 90-160 F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$955.50Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Buy American Act CompliantYes
Cold Inlet Temperature Range40 to 85 deg F
Cold Water Inlet Connection TypePress
Cold Water Inlet Size0.75''
Depth6.31"
Factory Set Temperature Deg F120
FinishRough Bronze
Flow Rate (GPM)0.5 to 23 gal/min
Height2.63"
Hot Inlet Temperature Range120 to 200 degree F
Hot Water Inlet Connection Size0.75''
Hot Water Inlet Connection TypePress
IndustryPlumbing
MaterialLead Free Copper Silicon Alloy
Maximum Pressure Differential25 Percent
Maximum Working Pressure Psi150
Minimum Differential Temperature Deg F5
Minimum Static Pressure Psi30
Outlet Connection Size1/2"
Outlet Connection Size Mm13 mm
Outlet Connection TypePress
Outlet Temperature Accuracyplus /- 7 deg F
Prop 65 WarningYes
SeriesLF1170
Temperature Adjustment Range90 to 160 deg F
Weight3.03 lbs.
Width4.5"
Shipping Dimensions (L x W x H)6.313" x 4.5" x 2.63"
Features & Benefits
- With Viega ProPress (R)
- Thermal actuation technology for precise temperature control
- Integral filter washers and check valves
- CSA certified B125 and ASSE 1017, IAMPO and UPC listed
Documents
Marketing Information

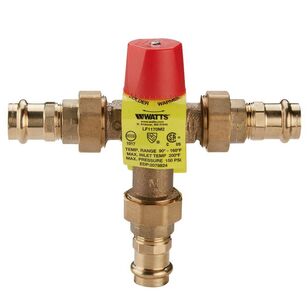

This 3/4 inch lead free hot water control valve is designed for installation on water heating equipment to provide tempered water to point-of-use fixtures and is ideal for radiant heat applications. The double throttling design combines hot and cold water control for a sensitive response to water temperature changes in the mixing chamber. It consists of a lead free brass body, Viega ProPress (R) connections, solid wax hydraulic principle thermostat, integral filter washers and check valves, virtual shutoff upon loss of cold water supply, and a locking mechanism for the temperature setting. The maximum pressure is 150 psi (10.3 bar). The adjustable field range temperature is 90 to 160 degrees F (32 to 71 degrees C).
3/4 IN Lead Free Hot Water Temperature Control Valve Press x Press Adjustable Temperature Range 90-160 F
BrandWATTS®
MFG #6550789
Keller #945088
