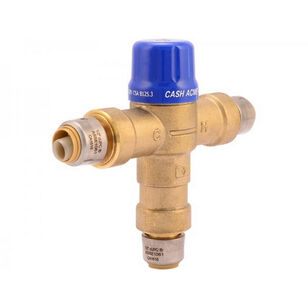

CashAcme™ HG110-D Series 24548 Thermostatic Mixing Valve, 1/2 in Nominal, 1 to 20 gpm, 230 psi, 120 to 180 deg F
CashAcme™ HG110-D Series 24548 Thermostatic Mixing Valve, 1/2 in Nominal, 1 to 20 gpm, 230 psi, 120 to 180 deg F
CashAcme™ Thermostatic Mixing Valve, HG110-D Series, 1/2 in Nominal, 230 psi, 1 to 20 gpm Flow Rate, Water Media, 5-15/16 in Inlet to Outlet Length, Brass Body, Stainless Steel Trim, Brass/Polymer/Stainless Steel Softgoods, 120 to 180 deg F, 5-3/8 in H x 1-9/16 in W, Additional Information: 120 deg F Factory Setting Temperature Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$258.30 / ea
In Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandSharkBite™
Additional Information120 deg F Factory Setting Temperature Rating
ApplicationCommercial and Domestic Hot Water Distribution
Body MaterialBrass
Connection TypeDirect SharkBite
Dimensions5-3/8 " H x 1-9/16 " W
Flow Rate1 to 20
IndustryPlumbing
Inlet to Outlet Length5-15/16
MediaWater
Nominal Size1/2
Pressure Rating230
SeriesHG110-D Series
Softgoods MaterialBrass/Polymer/Stainless Steel
Temperature Rating120 to 180
Trim MaterialStainless Steel
WarrantyLimited
Additional Information
ASSE 1017, 1069, 1070|CSA B125.3|IAPMO Listed|NSF/ANSI/CAN 61, 372
Marketing Information
The HG110-D with SharkBite™ connections is a triple-listed thermostatic mixing valve that delivers water at a safe 120 deg F (49 deg C) or lower from all outlets, while allowing the water heater to be set at a germ-killing 140 deg F (60 deg C) or higher which aids in preventing the growth of legionella bacteria in the water heater. The higher tank temperature means that hot water demands can be satisfied longer. The SharkBite™ connections means that installing the valve is easy and requires no soldering, glue or tools.
CashAcme™ HG110-D Series 24548 Thermostatic Mixing Valve, 1/2 in Nominal, 1 to 20 gpm, 230 psi, 120 to 180 deg F
BrandSharkBite™
MFG #24548
Keller #945344
