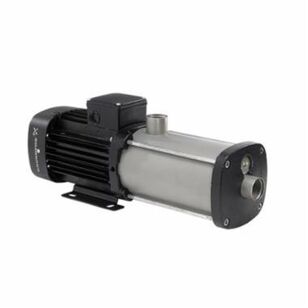

Grundfos CM Series 97568499 Multi-Stage End Suction Centrifugal Pump, 1.48 hp, 1 ph, 115/230 V, 52.8 gpm
Grundfos CM Series 97568499 Multi-Stage End Suction Centrifugal Pump, 1.48 hp, 1 ph, 115/230 V, 52.8 gpm
Grundfos Multi-Stage End Suction Centrifugal Pump, Series: CM Series, Model: CM 10-1, 115/230 V, Amperage Rating: 14.6/7.3 A, 60 Hz Frequency, HP Rating: 1.48 hp, Phase: 1 ph, 1-1/2 in Inlet Connection, Outlet Connection Size: 1-1/2 in, 52.8 gpm Flow Rate, Maximum Pressure: 232.06 psi, 3480 rpm Speed, Motor Speed Rating: 3320 rpm, Service Factor: 1, -4 to 248 deg F, Ball Bearing, Frame: 80BA, EPDM/Silicon Carbide/Stainless Steel Housing, 15.7 in Overall Length, 6.22 in Overall Width, 9.19 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,087.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Amperage Rating14.6/7.3
Bearing TypeBall
Flow Rate52.8
Frame80BA
Frequency Rating60
Housing MaterialEPDM/Silicon Carbide/Stainless Steel
HP Rating1.48
Inlet Connection Size1-1/2
Maximum Pressure232.06
ModelCM 10-1
Motor Speed Rating3320
Outlet Connection Size1-1/2
Overall Height9.19"
Overall Length15.7
Overall Width6.22
Phase1
SeriesCM Series
Service Factor1
Speed Rating3480
Temperature Rating-4 to 248
Voltage Rating115/230
Additional Information
AISI 304 Specified | ACS/EAC/UBA/WRAS Approved | CE Marked | cULus Listed | EN 1.4301 Specified | NSF 61 Certified | UL Recognized
Features & Benefits
- Nordlock© washer ensures secure clamping of pump impellers and provides quick and easy assembly and disassembly Grundfos designed mechanical O-ring shaft seal offers superior dry running capabilities and reduced sticking problems Encapsulated sleeve O-ring design retains O-ring when temperature change causes expansion and contraction Labyrinth seal provides protection for motor bearings and reduces maintenance Filling plug is sealed by O-ring for easy maintenance
Documents
Marketing Information
Compact, reliable, horizontal, multi-stage, end suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal NPT pipe threads. The pump is fitted with a 1 ph, foot-mounted, fan cooled asynchronous motor.
Grundfos CM Series 97568499 Multi-Stage End Suction Centrifugal Pump, 1.48 hp, 1 ph, 115/230 V, 52.8 gpm
BrandGrundfos
MFG #97568499
Keller #950111
My Part ##
Last Ordered#
$2,087.00 / ea
