• Extremely lightweight, The UltraLite® pad is a concrete pad at the weight of plastic, about 2.5 lb/sq-ft Concrete outer skin and EPS foam core provide flexibility and vibration dampening Flat bottom design provides excellent resistance to sinking and settling The textured surface of The UltraLite® prevents equipment sliding and allows water drainage Drillable for securing unit (1/4 x 1-1/4 in Tapcon® recommended), either side or top surface Freeze/thaw, UV, chemical and flame-resistant for long-term life outdoors Tested per ASTM D2299 with refrigerants, synthetic canine urine, compressor oil or salt solution Resistant to heating caused by the compressor and the surface is resistant to heat from incidental torch flame during installation

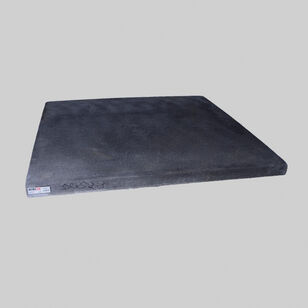

The UltraLite® equipment pads are composed of type I expanded polystyrene foam (EPS) having a nominal 1 lb/cu-ft (16 kg/cu-m) density. The pads are molded-in a form in which a cement slurry and polypropylene ber mat are bonded to five sides of the EPS foam. The pad is offered in both a 2 in (51 mm) or 3 in (76 mm) THK. The composite coating is approximately 7/32 in (5.6 mm) to 1/4 in (6.4 mm) THK on the pad surface. The products are available in various sizes as indicated in package metrics.
