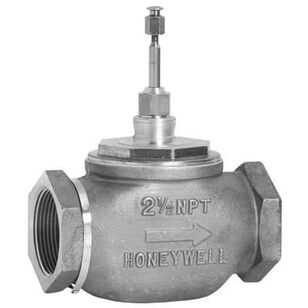

Honeywell V5011F1105/U Globe Valve, 2-1/2 in Nominal, Red Brass Body
Honeywell V5011F1105/U Globe Valve, 2-1/2 in Nominal, Red Brass Body
Honeywell Globe Valve, 2-1/2 in Nominal, FNPT Connection, 250 lb/sq-in at 100 deg F Water, 217 lb/sq-in at 250 deg F Water, 15 lb/sq-in Steam Safe Operating, 20 lb/sq-in Differential Close-Off, Pressure Class: 150 lb, Number of Ports/Ways: 2-Way, Red Brass Body, Brass Seat, Stainless Steel Stem, Teflon Disc, Nitrile/Teflon Packing, 40 to 337 deg F Fluid, 23 in H x 1-5/8 in W x 5-5/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,808.82Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Body MaterialRed Brass
Connection TypeFNPT
Dimensions23 " H x 1-5/8 " W x 5-5/8 " D
Disc MaterialTeflon
Nominal Size2-1/2"
Number of Ports/Ways2-Way
Packing MaterialNitrile/Teflon
Pressure Class150 lbs.
Pressure Rating250 lb/sq-" at 100 deg F Water, 217 lb/sq-" at 250 deg F Water, 15 lb/sq-" Steam Safe Operating, 20 lb/sq-" Differential Close-Off
Seat MaterialBrass
Stem MaterialStainless Steel
Temperature Rating40 to 337 deg F Fluid
Additional Information
ANSI/ASME 150, CRN Number 0C0861.9087YTN Certified
Features & Benefits
- Direct acting High pressure steam models with stainless steel trim Spring loaded, self-adjusting packing Stainless steel stem prevents corrosion Valve designs provide equal percentage characteristics of flow for close control of water and linear characteristic of flow for close control of steam or chilled water Valves utilize direct mounting, electric or pneumatic linear valve actuators, Q5001 linkage with Modutrol motor or Q5020/Q5022A linkages with direct coupled rotary actuators to operate the valve 1-3/8 in bonnet Stem down to close valve action Chilled or hot water with upto 50% glycol controlled fluid Equal percentage flow characteristic 3/4 in stem travel Brass plug 0.05% of Cu seat leakage
