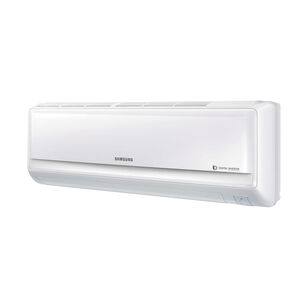

Samsung Max AQX36VFUAGM/CV Evaporator Single Zone Indoor Split System With Galvanized Steel Mounting Plate, 208 to 230 V
Samsung Max AQX36VFUAGM/CV Evaporator Single Zone Indoor Split System With Galvanized Steel Mounting Plate, 208 to 230 V
Samsung Max Evaporator Single Zone Indoor Split System, 208 to 230 V, 15 A, 58 W, 248 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 33000 Btu/hr, 34000 Btu/hr, 10.8 EER, 18 SEER, HSPF: 9, 1/4 in Flared High Side, 5/8 in Flared Low Side, 11/16 in OD Condensate Connection Type, 30 A Fuse, Inverter Drive, 33 dB, 49 dB, Wall Mount, 61 to 90 deg F Cooling, <=80 deg F Heating, 50-3/8 in Overall Width, 13-9/16 in Overall Height, Additional Information: 10 in D Dimensions, R-410A Refrigerant
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,559.68Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information10 " D Dimensions, R-410A Refrigerant
Amperage Rating15
BTU Rating33000 Btu/hr, 34000 Btu/hr
Connection Type1/4 " Flared High Side, 5/8 " Flared Low Side, 11/16 " OD Condensate
Drive TypeInverter
EER Rating10.8
Frequency Rating60
Fuse Rating30
HSPF Rating9
IncludesWireless Controller
Mounting TypeWall
Number of Fan Speeds3
Overall Height13-9/16
Overall Width50-3/8
Phase1
Power Rating58 W, 248 W
SEER Rating18
Sound Level33 dB, 49 dB
Temperature Rating61 to 90 deg F Cooling, <=80 deg F Heating
Voltage Rating208 to 230
Warranty10 Year Compressor, 10 Year Parts, 1 Year Limited Labor
Additional Information
AHRI 210/240|cETLus Listed|UL 94
Features & Benefits
- Low ambient control built-in Electro-static, washable, HD (high density) main filter as standard The heat exchanger shall be mechanically bonded fin to copper tube The compressor shall be hermetically sealed, inverter controlled twin BLDC rotary-type The indoor fan shall be a single, anti-bacterial cross-flow type Three-fan speed settings and auto setting Control signal shall be a DDC-type signal Interconnect control wiring shall be two 16 AWG shielded wire between outdoor and indoor unit Auto restart Turbo mode (during cooling operation only) Auto changeover 24 hr timer Good sleep mode Quiet mode Dry mode
