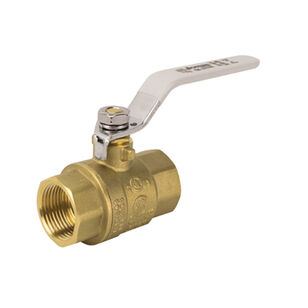

Jomar Valve® T-150G Series 150-103G Ball Valve, 1/2 in, Threaded, Brass, 600 psi
Jomar Valve® T-150G Series 150-103G Ball Valve, 1/2 in, Threaded, Brass, 600 psi
Jomar Valve® Ball Valve, T-150G Series, 1/2 in Nominal, Threaded Connection, Full Port, 2-Piece, 600 psi, Gas, Oil, Water Media, 2.09 in Inlet to Outlet Length, 1.78 in Top to Inlet Center, Handle Operator, Material Standard: ANSI B1.20.1, ANSI Z21.15, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, PTFE Packing, Steel Handle, 304 Stainless Steel Ball, FKM/PTFE Softgoods, Lead-Free, 2.09 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$22.13 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandJomar Valve®
Ball Material304 Stainless Steel
Body MaterialBrass
Configuration2-Piece
Connection TypeThreaded
Dimensions2.09 " L
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.09
Lead-FreeYes
Material StandardANSI B1.20.1, ANSI Z21.15
MediaGas, Oil, Water
Nominal Size1/2
Operator TypeHandle
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seat MaterialPTFE
SeriesT-150G Series
Softgoods MaterialFKM/PTFE
Stem MaterialBrass
Top to Inlet Center1.78
Trim MaterialBrass/PTFE
Additional Information
ASME B16.44, B16.33|CGA 3.16, CR91|cCSAus Certified|cULus Listed|cUPC Certified|FM Approved|IAPMO Approved|MSS-SP-110|NSF 61-8, 372
Features & Benefits
- Dezincification-resistant brass alloy Gland follower and single O-ring stem design Blowout-proof stem Wetted surface contain <0.25% lead content
Documents
Jomar Valve® T-150G Series 150-103G Ball Valve, 1/2 in, Threaded, Brass, 600 psi
BrandJomar Valve®
MFG #150-103G
Keller #953483
