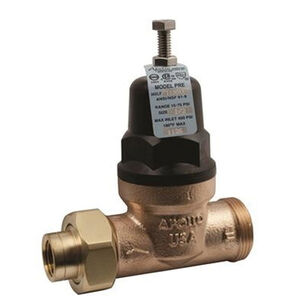

Apollo® 36ELF Series 36ELF11801T Pressure Reducing Valve, 2 in Nominal, Union FNPT x FNPT, 15 to 75 psi, 33 to 180 deg F
Apollo® 36ELF Series 36ELF11801T Pressure Reducing Valve, 2 in Nominal, Union FNPT x FNPT, 15 to 75 psi, 33 to 180 deg F
Apollo® Pressure Reducing Valve, 36ELF Series, 2 in Nominal, Union FNPT x FNPT Connection, 15 to 75 psi, Water Media, 8.36 in Inlet to Outlet Length, Material Standard: ASTM B16, A228, UNS 89836, UNS C27451, Bronze Body, EPDM Seat, EPDM Disc, EPDM Softgoods, Lead-Free, Yellow, 33 to 180 deg F, 10 in H x 3.38 in W, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,865.54 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
ApplicationBuilding Installations, Potable Water and Industry Applications
Body MaterialBronze
ColorYellow
Connection TypeUnion FNPT x FNPT
Dimensions10 " H x 3.38 " W
Disc MaterialEPDM
Domestic/ImportDomestic
IndustryPlumbing
Inlet to Outlet Length8.36
Lead-FreeYes
Material StandardASTM B16, A228, UNS 89836, UNS C27451
MediaWater
Nominal Size2
Pressure Rating15 to 75
Seat MaterialEPDM
Series36ELF Series
Softgoods MaterialEPDM
Temperature Rating33 to 180
Additional Information
ARRA Compliant|ASSE 1003|BAA Compliant|BABA Compliant|cCSAus Certified|CSA B356|IAPMO Certified|NSF/ANSI 372|NSF/ANSI 61|UNS C2745 Tailpiece|UPC Certified
Features & Benefits
- Balanced piston design Stainless steel adjusting screw and nut Sealed cage for vault installation Built-in thermal expansion bypass Large area integral stainless steel strainer Modular seat disc and strainer cartridge High flow/high efficiency design 100% manufactured in USA
Documents
Marketing Information
The Apollo® 36ELF Series lead-free pressure reducing valve is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification-resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy inline servicing with simple cartridge removal.
