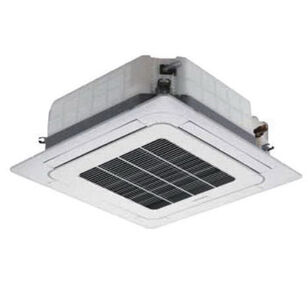

Quietside® FJM Series AJ018JNNDCH/AA Mini-Split Air Conditioner, R-410A Refrigerant
Quietside® FJM Series AJ018JNNDCH/AA Mini-Split Air Conditioner, R-410A Refrigerant
Quietside® Mini-Split Air Conditioner, Series: FJM Series, 208 to 230 V, 0.53 A, 24 W, 60 Hz, 1 ph, 17700 Btu/hr, 380 cfm CFM Rating, Flared, R-410A, Ductless Vent, Ducted or Ductless, 39 dBA, 4.1 pt/hr Dehumidification, Cassette Mount, Steel, Galvanized, 80 deg F, 10-3/8 in H x 26-1/2 in W x 26-1/2 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,114.56 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating0.53
BTU Rating17700
CFM Rating380
Connection TypeFlared
Dehumidification4.1
Dimensions10-3/8 " H x 26-1/2 " W x 26-1/2 " D
FinishGalvanized
Frequency Rating60
IndustryHVAC
MaterialSteel
Mounting TypeCassette
Phase1
Power Rating24
Refrigerant TypeR-410A
SeriesFJM Series
Sound Level39
Temperature Rating80
Voltage Rating208 to 230
Additional Information
C/US ETL Intertek Listed|ETL Listed
Features & Benefits
- Electro-static, washable, pleated filter as standard (included with fascia panel) Built-in condensate pump and check valve with maximum 29 ft lift Knock-out for outside air capability (with booster fan connection) Fascia panel shall have LED indicator lights, IR receiver and four motorized louvers (independent louver control is possible with wireless or premium wired controller) High voltage terminal block temperature sensor to disable unit in the event overheating of power connection The indoor unit shall be powered by the outdoor unit Galvanized steel frame with HIPS chassis and fascia panel certified to UL94 V0 The heat exchanger shall be mechanically bonded fin to copper tube Single turbo indoor fan Three-speed fan settings and auto setting Control signal shall be a DDC-type signal Interconnect control wire between outdoor and indoor units shall be 16 AWG x two-shielded Controls shall integrate with a BMS system The system shall integrate with the Samsung controls solution
Documents
Quietside® FJM Series AJ018JNNDCH/AA Mini-Split Air Conditioner, R-410A Refrigerant
BrandSamsung
MFG #AJ018JNNDCH/AA
Keller #956274
