Samsung AC030KN4DCH/AA Mini-Split Heat Pump Indoor Unit, 208 to 230 V, 19.71 A, 1 ph -Phase, Steel
Samsung AC030KN4DCH/AA Mini-Split Heat Pump Indoor Unit, 208 to 230 V, 19.71 A, 1 ph -Phase, Steel
Samsung Mini-Split Heat Pump Indoor Unit, 208 to 230 V, 19.71 A, 125 W Condenser, 97 W Evaporator, 60 Hz, 1 ph, 30000 Btu/hr Cooling, 32000 Btu/hr Heating, 2219 cfm Condenser, 904 cfm Evaporator CFM Rating, 10.4 EER, 19.2 SEER, HSPF: 9.9, Flared Connection Type, R-410A, Inverter Drive, 38 dBA, Ceiling Cassette Mount, Steel, Galvanized, 61 to 90 deg F Cooling, <=80 deg F Heating, 37-1/4 in Overall Length, 37-1/4 in Overall Width, 14-3/8 in Overall Height, Additional Information: Twin BLDC Rotary Compressor, Single Zone
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,036.96Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional InformationTwin BLDC Rotary Compressor, Single Zone
Amperage Rating19.71
BTU Rating30000 Btu/hr Cooling, 32000 Btu/hr Heating
CFM Rating2219 cfm Condenser, 904 cfm Evaporator
Connection TypeFlared
Drive TypeInverter
EER Rating10.4
FinishGalvanized
Frequency Rating60
HSPF Rating9.9
IndustryHVAC
MaterialSteel
Mounting TypeCeiling Cassette
Overall Height14-3/8
Overall Length37-1/4
Overall Width37-1/4
Phase1
Power Rating125 W Condenser, 97 W Evaporator
Refrigerant TypeR-410A
SEER Rating19.2
Sound Level38
Temperature Rating61 to 90 deg F Cooling, <=80 deg F Heating
Voltage Rating208 to 230
Warranty10 Year Compressor, 10 Year Parts, 1 Year Limited Labor
Additional Information
AHRI Certified|cETLus Listed
Features & Benefits
- The indoor unit shall be a round ceiling cassette with 360 deg, even air distribution The outdoor unit shall supply power to indoor unit via 14/3 AWG power wire Auto restart after power loss The indoor unit shall have a removable EEPROM that stores system programming information, unit name and other data Electro-static, washable, pleated filter as standard (included with fascia panel) Built-in condensate pump with maximum 29 in lift from the bottom of the unit, check valve and float switch that disables indoor unit during overflow detection Knock-out for outside air capability (with booster fan connection) Fascia panel shall have LED indicator lights and an infrared receiver The indoor unit shall not have air louvers or blades allowing full airflow without restriction, air direction control shall be achieved by creating a low pressure area near air outlet causing discharge air to change direction angle Fixed or auto swing air direction shall be possible with wireless, touch or premium wired controller (10 to 60 deg angle) Independent air distribution control shall be possible with wireless or premium wired controller (three directions, 10 to 60 deg angle)
Marketing Information

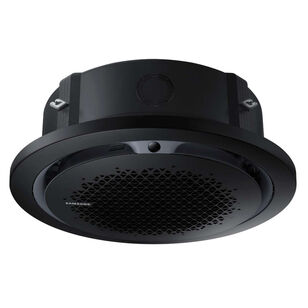

Meet Samsung's exclusive 360 cassette. Enjoy even airflow from a sleek design that fits into almost any setting. The 360 cassette is offered in both black and white for open-type (circle) and ceiling-type (square) fascia panel options.
Samsung AC030KN4DCH/AA Mini-Split Heat Pump Indoor Unit, 208 to 230 V, 19.71 A, 1 ph -Phase, Steel
BrandSamsung
MFG #AC030KN4DCH/AA
Keller #956286
My Part ##
Last Ordered#
$3,036.96Â /Â ea
