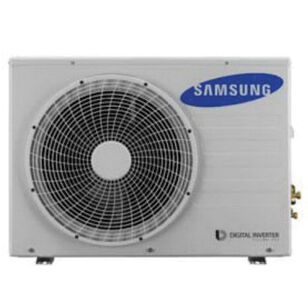

Samsung AC018JXADCH/AA Ducted Mini-Split Heat Pump, 208 to 230 V, 10 A, 18000 Btu/hr Heating, 1 ph
Samsung AC018JXADCH/AA Ducted Mini-Split Heat Pump, 208 to 230 V, 10 A, 18000 Btu/hr Heating, 1 ph
Samsung Ducted Mini-Split Heat Pump, 208 to 230 V, 10 A, 39 W, 60 Hz, 1 ph, 18000 Btu/hr Heating, 390 to 590 cfm Heating CFM Rating, 11.2 EER Rating, 19.6 SEER, 10.3 HSPF, Flared Connection, Inverter Driven Twin BLDC Rotary Compressor, R-410A Refrigerant, 15 A Fuse Rating, Tonnage: 1.5 ton, 48 dBA Heating Sound Level, Aluminum/Copper, 23 to 115 deg F Heating Operating Temperature, 34-5/8 in Overall Width, 25-1/8 in Overall Height, Additional Information: 4.26 pt/hr Dehumidification, 18 FPI Fins Per Inch, 12-1/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,009.96Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information4.26 pt/hr Dehumidification, 18 FPI Fins Per ", 12-1/4 " D
Amperage Rating10
ApplicationFor residential and commercial applications
BTU Rating18000 Btu/hr
CFM Rating390 to 590 cfm
Compressor TypeInverter Driven Twin BLDC Rotary
Connection TypeFlared
Dehumidification4.26 pt/hr
Dimensions25-1/8" H x 34-5/8" W x 12-1/4" D
EER Rating11.2
Fins per Inch18 FPI
Frequency Rating60
Fuse Rating15
Heating BTU Rating18000
Heating CFM Rating390 to 590
Heating Operating Temperature23 to 115
Heating Sound Level48
HSPF Rating10.3
IndustryHVAC
MaterialAluminum/Copper
Overall Height25-1/8
Overall Width34-5/8
Phase1
Power Rating39
Refrigerant TypeR-410A
SEER Rating19.6
Sound Level48 dBA
Temperature Rating23 to 115 deg F
Tonnage1.5
Voltage Rating208 to 230
Warranty10 Year Parts, 10 Year Compressor
Additional Information
cETLus Intertek Listed
Features & Benefits
- Horizontal discharge airflow Low ambient control Auto restart after power loss The outdoor unit shall supply power to indoor unit via 14 AWG x 3 power wire The outdoor unit shall have a snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit The outdoor unit shall have a night time quiet mode option to reduce operating sound during the night High performance and energy saving Long piping (length and height) Eco-friendly product (lead-free, RoHS, WEEE) Flexible pipe installation four different ways Auto changeover 6.1 A rated load, 8.6 A minimum circuit, 0.85 A full load Flat fin
Samsung AC018JXADCH/AA Ducted Mini-Split Heat Pump, 208 to 230 V, 10 A, 18000 Btu/hr Heating, 1 ph
BrandSamsung
MFG #AC018JXADCH/AA
Keller #956290
My Part ##
Last Ordered#
$3,009.96Â /Â ea
