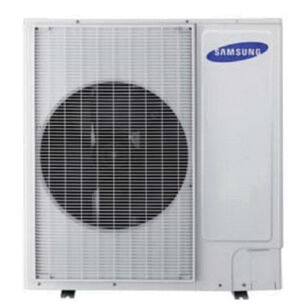

Samsung AC024JXADCH/AA Ducted Mini-Split Heat Pump, 208 to 230 V, 12 A, 24000 Btu/hr Heating, 1 ph
Samsung AC024JXADCH/AA Ducted Mini-Split Heat Pump, 208 to 230 V, 12 A, 24000 Btu/hr Heating, 1 ph
Samsung Ducted Mini-Split Heat Pump, 208 to 230 V, 12 A, 125 W, 60 Hz, 1 ph, 24000 Btu/hr Heating, 540 to 740 cfm Heating CFM Rating, 12.1 EER Rating, 20 SEER, 10.5 HSPF, Flared Connection, Inverter Driven Twin BLDC Rotary Compressor, R-410A Refrigerant, 20 A Fuse Rating, Tonnage: 2 ton, 50 dBA Heating Sound Level, Aluminum/Copper, 23 to 115 deg F Heating Operating Temperature, 37 in Overall Width, 39-11/16 in Overall Height, Additional Information: 6.13 pt/hr Dehumidification, 18 FPI Fins Per Inch, 12-3/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,918.32Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information6.13 pt/hr Dehumidification, 18 FPI Fins Per ", 12-3/4 " D
Amperage Rating12
ApplicationFor residential and commercial applications
BTU Rating24000 Btu/hr
CFM Rating540 to 740 cfm
Compressor TypeInverter Driven Twin BLDC Rotary
Connection TypeFlared
Dehumidification6.13 pt/hr
Dimensions39-11/16" H x 37" W x 12-3/4" D
EER Rating12.1
Fins per Inch18 FPI
Frequency Rating60
Fuse Rating20
Heating BTU Rating24000
Heating CFM Rating540 to 740
Heating Operating Temperature23 to 115
Heating Sound Level50
HSPF Rating10.5
IndustryHVAC
MaterialAluminum/Copper
Overall Height39-11/16
Overall Width37
Phase1
Power Rating125
Refrigerant TypeR-410A
SEER Rating20
Sound Level50 dBA
Temperature Rating23 to 115 deg F
Tonnage2
Voltage Rating208 to 230
Warranty10 Year Parts, 10 Year Compressor
Additional Information
cETLus Intertek Listed
Features & Benefits
- Horizontal discharge airflow Low ambient control Auto restart after power loss The outdoor unit shall supply power to indoor unit via 14 AWG x 3 power wire The outdoor unit shall have a snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit The outdoor unit shall have a night time quiet mode option to reduce operating sound during the night Smart Inverter maintains temperature without frequently shutting off using 70% less energy Auto changeover 9 A rated load, 11.7 A minimum circuit Flat fin
