Samsung

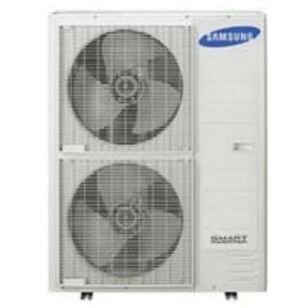

Samsung AC036JXADCH/AA Ductless Mini-Split Heat Pump, 208 to 230 V, 25.5 A, 36000 Btu/hr Heating, 1 ph, Steel
Samsung
Samsung AC036JXADCH/AA Ductless Mini-Split Heat Pump, 208 to 230 V, 25.5 A, 36000 Btu/hr Heating, 1 ph, Steel
MFG #AC036JXADCH/AA
Item #956293
Mfr. Part #AC036JXADCH/AA
UPC #
Samsung Ductless Mini-Split Heat Pump, 208 to 230 V, 25.5 A, 97 W, 125 W, 60 Hz, 1 ph, 36000 Btu/hr Heating, 1020 cfm Heating CFM Rating, 12.1 EER Rating, 20.5 SEER, 9.5 HSPF, Flared Connection, Rotary Compressor, R-410A Refrigerant, Tonnage: 3 ton, 51 dBA Heating Sound Level, Cassette Mounting, Steel, Baked-On Powder-Coated/Galvanized, 23 to 115 deg F Heating Operating Temperature, 37 in Overall Width, 48 in Overall Height, Additional Information: 8.5 pt/hr Dehumidification, 18 FPI Fins Per Inch, 13 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,865.48Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information8.5 pt/hr Dehumidification, 18 FPI Fins Per ", 13 " D
Amperage Rating25.5
ApplicationFor residential and commercial applications
BTU Rating36000 Btu/hr
CFM Rating1020 cfm, 3040 cfm
Compressor TypeRotary
Connection TypeFlared
Dehumidification8.5 pt/hr
Dimensions48" H x 37" W x 13" D
EER Rating12.1
FinishBaked-On Powder-Coated/Galvanized
Fins per Inch18 FPI
Frequency Rating60
Heating BTU Rating36000
Heating CFM Rating1020
Heating Operating Temperature23 to 115
Heating Sound Level51
HSPF Rating9.5
IndustryHVAC
MaterialSteel
Mounting TypeCassette
Overall Height48
Overall Width37
Phase1
Power Rating97 W, 125 W
Refrigerant TypeR-410A
SEER Rating20.5
Sound Level51 dBA
Temperature Rating23 to 115 deg F
Tonnage3
Voltage Rating208 to 230
Warranty10 Year Parts, 10 Year Compressor
Additional Information
cETLus Intertek Listed
Features & Benefits
- Low ambient control The outdoor unit shall supply power to indoor unit via 14 AWG x 3 power wire Auto restart after power loss The outdoor unit shall have a snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit The indoor and outdoor units shall have a removable EEPROM that stores system programming information, unit name and other data Electro-static, washable, pleated filter as standard (included with fascia panel) Built-in condensate pump and check valve with maximum 29 in lift Knock-out for outside air capability (with booster fan connection) Fascia panel shall have LED indicator lights, IR receiver and four motorized louvers (independent louver control is possible with wireless or premium wired controller) Pipe connections at the outdoor unit shall be made inside the unit chassis, refrigerant pipes can exit through the front, side, rear or bottom sides of the outdoor unit The outdoor unit shall have a night time quiet mode option to reduce operating sound during the night (automatic or manual activation with dry contact signal) The outdoor unit shall be galvanized steel with a baked-on powder-coated finish for durability The outdoor unit heat exchanger shall be aluminum, flat fin, micro-channel Control signal shall be a DDC-type signal Interconnect control wire between outdoor and indoor units shall be 16 AWG x two-shielded Controls shall integrate with a BMS system The system shall integrate with the Samsung NASA controls solution The compressor shall be hermetically sealed, inverter controlled, BLDC rotary Refrigerant flow shall be controlled by electronic expansion valve at outdoor unit Soft start to reduce current demand during compressor start
