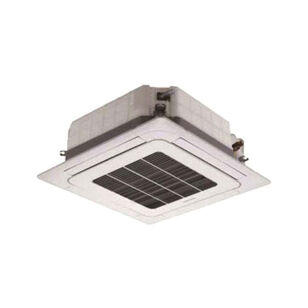

Samsung AC030JN4DCH/AA Mini-Split Heat Pump Indoor Unit, 208 to 230 V, 23.2 A, 1 ph -Phase, Steel
Samsung AC030JN4DCH/AA Mini-Split Heat Pump Indoor Unit, 208 to 230 V, 23.2 A, 1 ph -Phase, Steel
Samsung Mini-Split Heat Pump Indoor Unit, 208 to 230 V, 23.2 A, 125 W Condenser, 97 W Evaporator, 60 Hz, 1 ph, 30000 Btu/hr Cooling, 32000 Btu/hr Heating, 2221 cfm Condenser, 900 cfm Evaporator CFM Rating, 10.4 EER, 19.2 SEER, HSPF: 9.8, Flared Connection Type, R-410A, Inverter Drive, 38 dBA, Cassette Mount, Steel, Galvanized, 61 to 90 deg F Cooling, <=80 deg F Heating, 33 in Overall Length, 33 in Overall Width, 11-5/16 in Overall Height, Additional Information: Twin BLDC Rotary Compressor, Single Zone
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,688.04Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional InformationTwin BLDC Rotary Compressor, Single Zone
Amperage Rating23.2
BTU Rating30000 Btu/hr Cooling, 32000 Btu/hr Heating
CFM Rating2221 cfm Condenser, 900 cfm Evaporator
Connection TypeFlared
Drive TypeInverter
EER Rating10.4
FinishGalvanized
Frequency Rating60
HSPF Rating9.8
IndustryHVAC
MaterialSteel
Mounting TypeCassette
Overall Height11-5/16
Overall Length33
Overall Width33
Phase1
Power Rating125 W Condenser, 97 W Evaporator
Refrigerant TypeR-410A
SEER Rating19.2
Sound Level38
Temperature Rating61 to 90 deg F Cooling, <=80 deg F Heating
Voltage Rating208 to 230
Warranty10 Year Compressor, 10 Year Parts, 1 Year Limited Labor
Additional Information
AHRI Certified|cETLus Listed
Features & Benefits
- Low ambient control built-in The outdoor unit shall supply power to indoor unit via 14/3 AWG power wire Auto restart after power loss The indoor and outdoor units shall have a removable EEPROM that stores system information, unit name and other data All indoor unit addressing and option settings shall be done digitally, the indoor unit does not contain rotary dials or setting switches Electro-static, washable, pleated filter as standard (included with fascia panel) Built-in condensate pump and check valve with maximum 29 in lift, check valve and float switch that disables indoor unit during overflow detection Knock-out for outside air capability (with booster fan connection) Fascia panel shall have LED indicator lights, IR receiver and four motorized louvers (independent louver control is possible with wireless or premium wired controller)
Marketing Information
CAC four-way cassette units connect to CAC universal outdoor unit models AC0XXJXADCH/AA. Samsung CAC four-way cassette 2015 integrates seamlessly into any decor to provide up to 48000 Btu/hr of cooling with exceptional efficiency and minimal noise levels. Standard and max heat outdoor unit models are available (2.5 and 3 ton capacities). Max Heat outdoor units provide advanced heating performance at -13 deg F for the coldest of climates.
