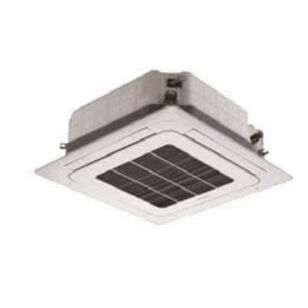

Samsung AC036JN4DCH/AA Ducted Cassette Split-System Heat Pump, 208 to 230 V, 25.5 A, 36000 Btu/hr BTU, 1 ph, Steel
Samsung AC036JN4DCH/AA Ducted Cassette Split-System Heat Pump, 208 to 230 V, 25.5 A, 36000 Btu/hr BTU, 1 ph, Steel
Samsung Ducted Cassette Split-System Heat Pump, 208 to 230 V, 25.5 A, 60 Hz, 1 ph Phase, 36000 Btu/hr, 840 cfm, 960 cfm, 1020 cfm, 12.1 EER Rating, 20.5 SEER, 9.5 HSPF, R-410A Refrigerant, 35 A Fuse Rating, Tonnage: 3 ton, 33 dBA, 38 dBA, 43 dBA Sound Level, Steel, Finish: Baked-On Powder-Coated/Galvanized, 61 to 90 deg F, 33 in Overall Width, 11-5/16 in Overall Height, Additional Information: 8.5 pt/hr Dehumidification, 33 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,767.96Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information8.5 pt/hr Dehumidification, 33 " D
Amperage Rating25.5
BTU Rating36000
CFM Rating840 cfm, 960 cfm, 1020 cfm
EER Rating12.1
FinishBaked-On Powder-Coated/Galvanized
Frequency Rating60
Fuse Rating35
HSPF Rating9.5
IndustryHVAC
MaterialSteel
Overall Height11-5/16
Overall Width33
Phase1
Refrigerant TypeR-410A
SEER Rating20.5
Sound Level33 dBA, 38 dBA, 43 dBA
Temperature Rating61 to 90
Tonnage3
Voltage Rating208 to 230
Additional Information
AHRI Certified|cETLus Listed
Features & Benefits
- Low ambient control built-in Auto restart after power loss The indoor and outdoor units shall have a removable EEPROM that stores system programming information, unit name and other data All indoor unit addressing and option settings shall be done digitally, the indoor unit does not contain rotary dials or setting switches Electro-static, washable, pleated filter as standard (included with fascia panel) Knock-out for outside air capability (with booster fan connection) Fascia panel shall have LED indicator lights, IR receiver and four motorized louvers Built-in condensate pump with maximum 29 in lift, check valve and float switch that disables indoor unit during overflow detection The indoor unit heat exchanger shall be mechanically bonded fin to copper tube Control signal shall be a DDC-type signal Interconnect control wire between outdoor and indoor units shall be 16 AWG x two-shielded Wired or wireless controls must be purchased separately Connection to optional wired controllers shall be 16 AWG X two-shielded wire Controls shall integrate with a BMS system The compressor shall be hermetically sealed, inverter controlled, twin BLDC rotary Soft start to reduce current demand during compressor start 10 years limited parts and compressor warranty
Documents
Samsung AC036JN4DCH/AA Ducted Cassette Split-System Heat Pump, 208 to 230 V, 25.5 A, 36000 Btu/hr BTU, 1 ph, Steel
BrandSamsung
MFG #AC036JN4DCH/AA
Keller #956307
