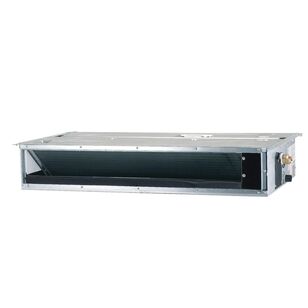

Samsung AC012KNLDCH/AA Single-Zone Slim Duct Split System Indoor Unit, 208 - 230 VAC, 7.1 A Cooling, 6.8 A Heating, 1 ph
Samsung AC012KNLDCH/AA Single-Zone Slim Duct Split System Indoor Unit, 208 - 230 VAC, 7.1 A Cooling, 6.8 A Heating, 1 ph
Samsung Single-Zone Slim Duct Split System Indoor Unit, 208 - 230 VAC, 7.1 A Cooling, 6.8 A Heating, 60 Hz, 1 ph Phase, 3 Fan Speeds, 12000 Btu/hr Cooling, 14000 Btu/hr Heating, 425 cfm, 12 EER Rating, 20 SEER, 10.5 HSPF, 1/4 in Liquid x 3/8 in Gas Connection, BLDC Rotary, Inverter Driven Compressor, R-410A Refrigerant, 34 dBA Sound Level, Steel, Finish: Galvanized, 61 to 90 deg F Cooling, <80 deg F Heating, 23-5/8 in Overall Length, 27-9/16 in Overall Width, 7-13/16 in Overall Height, For Use With: AC012KXADCH/AA (CXH12ADK) CAC Outdoor Units
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,756.08Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating7.1 A Cooling, 6.8 A Heating
BTU Rating12000 Btu/hr Cooling, 14000 Btu/hr Heating
CFM Rating425
Compatible Outdoor Unit ModelAC012KXADCH/AA (CXH12ADK)
Compressor TypeBLDC Rotary, Inverter Driven
Connection Type1/4 " Liquid x 3/8 " Gas
Cooling at 95F: Maximum Capacity (BTUH)15300
Cooling at 95F: Minimum Capacity (BTUH)3400
Cooling at 95F: Moisture Removal (Pints/h)3.38
Cooling at 95F: Rated Capacity (BTUH)12000
EER Rating12
Efficiency: COP at 47F3.16
Efficiency: HSPF10.5
FinishGalvanized
Frequency Rating60
Guaranteed Operating Voltage Range (VAC)176/254 VAC
Heating at 47F: Maximum Capacity (BTUH)16200
Heating at 47F: Minimum Capacity (BTUH)3000
Heating at 47F: Rated Capacity (BTUH)14000
HSPF Rating10.5
Indoor Unit: Drain Pipe Size Inch (mm)1-1/4 OD, 1 ID
Indoor Unit: Fan Motor Output (W)69
Indoor Unit: Fan Motor TypeBLDC With Axial Type Fan (1)
Indoor Unit: Fan TypeBLDC (1) With Sirocco Fan (2)
Indoor Unit: Fuse/Breaker Size (Amp)15
Indoor Unit: Heat Exchanger Tube Dia. Inch (mm)1/4
Indoor Unit: MCA10.6
Indoor Unit: Refrigerant ControlEEV
Indoor Unit: Sound Pressure Level dB (A)27 / 31 / 34
MaterialSteel
Model NumberAC0
Number of Fan Speeds3
Outdoor Unit: Airflow Rate (CFM)1271
Outdoor Unit: Compressor RLA8.1
Outdoor Unit: Compressor TypeInverter Driven, BLDC, Rotary
Outdoor Unit: Fan Motor FLA0.17
Outdoor Unit: Fan Motor Output (W)39
Outdoor Unit: Heat Exchanger Tube Dia. Inch (mm)3/8
Outdoor Unit: Sound Pressure Level dB[A]47/48 (Cooling/Heating)
Overall Height7-13/16
Overall Length23-5/8
Overall Width27-9/16
Phase1
Piping: Max. Piping Height Difference Feet (m)49
Piping: Max. Piping Length Feet (m)65.6
Power Supply208/230 V/1 Phase/60 Hz
Refrigerant Data: TypeR-410A
Refrigerant TypeR-410A
SEER Rating20
Sound Level34
Additional Information
AHRI Certified|cETLus Listed|ENERGY STAR® Certified|UL 1995
Features & Benefits
- Horizontal discharge airflow Auto-restart after power loss The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire The outdoor unit shall have a snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit The indoor and outdoor units shall have a removable EEPROM that stores system programming information, unit name, and other data Electrostatic, washable filter included as standard Built in condensate pump with maximum 29" lift and float switch that disables indoor unit during overflow detection Hear exchanger - The indoor and outdoor unit heat exchanger shall be mechanically bonded aluminum fin to copper tube
